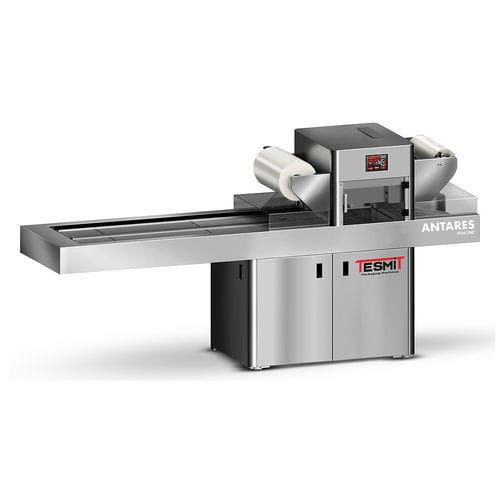

Automatic tray sealer ANTARES FCH-90

linear arrayfor the food industry

Automatic pneumatic Tray sealer machine. With die cutting mold. Our automatic Tray sealers machine allows automatic advancement of saucers or trays for large quantity food production, furthermore its robustness and fine finishes make it an absolute protagonist in its category. The manufacturing excellence guarantees a ten-year working life taking into account continuous and daily use. It is ideal for packaging semi-processed or processed foods with sauces and liquids. The sealing process is automatic, with customized die-cutting of the tray profile. Perfect heat sealing Top seal is the basic function of a heat sealer, it consists in making the film adhere to the tray using heat Easy opening Welding technology with Easy Peel film in order to make the opening process always easy and intuitive. Perfect tray cut The extreme care in the construction of the mold allows a perfect cutting of the excess film waste, guaranteeing a high quality product. Maximum tray size Maximum area: 325 x 265 x H120 mm Example: • No. 1 GN 1/2 • Nr. 2 GN 1/4 Data sheet: • Machine structure in ALUMINUM / STAINLESS STEEL • Maximum film reel length: 430 mm • Maximum tray size: 325x265 h120 mm • Automatic film cutting, die-cutting blades • Molds for interchangeable trays • Electrical supply: 400 V 50 Hz / 3P +N +T • Machine dimensions: L 2,760 x H 1,400 x D 700 mm - 290.00 Kg
