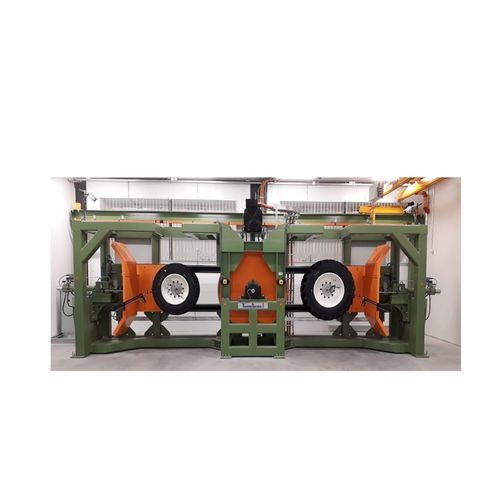

Endurance test bench HSEND

automaticfor tiresfor the aeronautical industry

This is a family of Endurance & High-Speed Test Machines that can be supplied both with vertical and horizontal drum depending on the configuration chosen; with vertical drums we can reach up to 4 tires, while with horizontal drum the machine can test up to 6 tires at the same time. The test machines perform Endurance and/or High-Speed tests on PC, LT, TB, IND, AGRI and OTR tires in compliance with all international standards such as GSO, BIS, UN/ECE, DOT, FMVSS or SAE. The machine can be provided with 1, 2, 4 or 6 test stations and the drum diameter can be 1.7, 2, 3 or 5 m. The Radial Load can go up to 80 tons and reach speeds of up to 400 km/h. The main test standards with which it complies are: FMVSS 109 / 119 /139, ISO 10231, ISO 10191, SAE J1561, SAE J1633, UN ECE R30, R54, R64, R75, R106, R108, R109. TESTS PERFORMED • Endurance test • High speed test
