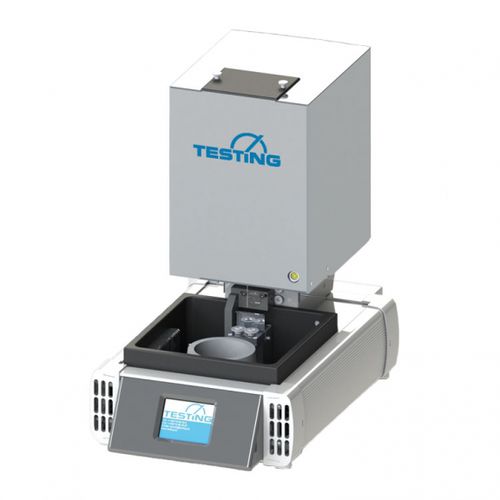

Computer-controlled Vicat needle apparatus
With 1 measuring point
Fully automatic
EN 196-3
Construction
Programmed test sequences
Tests can be performed in air or in water bath
with constant temperature (heat exchanger
and cooler for constant water temperature)
The unit automatic records initial set time and
final set time, as well as of setting plots
Weight of plunger and the Vicat needle are
an additional 300 g ± 1 g
After each penetration the Vicat needle is
automatically cleaned
Scope of delivery
• Base unit as a table model
• Standard software for programmable
test sequences and for data recording
• 1 Vicat moulds (conical hard plastic ring)
70/80 dia. x 40 mm
• 1 glass base plates, 120 mm dia.
• 1 centerings for Vicat moulds (conical hard
plastic ring) 70/80 dia. x 40 mm
• 1 pair of cleaning brushes
• 1 tee wrench, 1.25 mm
• 1 tee wrench, 2 mm
• 1 spare glass plates, 120 mm dia.
• 2 spare initial-set needles, 1.13 mm dia.
• Serial cable
• USB/RS232-Adapter
• Mains cable
Important notes*
For operation is a standard PC or laptop required,
which is not included in the scope of delivery
Dimensions
(wxdxh) = 280 x 490 x 430 mm
Weight: 20 kg
110-250 V / 50-60 Hz
