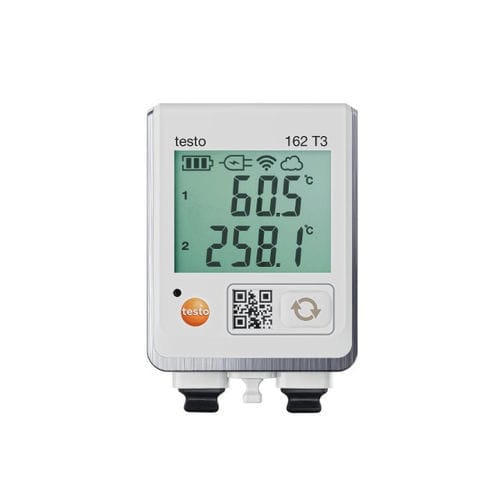

Temperature data-logger 162 T3

onlinewith screenfor thermocouples

Product description
The testo 162 T3 online temperature data logger is a compact, easy-to-use climate logger with on-device display for continuous temperature monitoring. It provides 2 inputs for external thermocouple (TC) probes and transmits measured data via WLAN to testo Smart Connect and the testo Saveris Cloud. Access, analysis and alarms require a Testo Data Monitoring license.

Your advantages

• Automatic temperature monitoring using external thermocouples (TC)
• Email, SMS or push alerts when limits are exceeded
• Integration with testo Smart App for simple commissioning, push alarms and dashboard
• Automatic measurement documentation in testo Smart Connect
• Wireless data transfer via WLAN for remote access
• Local visual inspection via large on-device display

Delivery scope

• Online data logger testo 162 T3
• Micro USB cable
• Wall bracket with lock
• Batteries (4 x AA AlMn)
• Quick start guide
• Test protocol

Technical tables
Temperature - Type K TC
Measuring range: -195 to +1350 °C
Accuracy: ±(0.5 °C + 0.5 % of mv) °C
Resolution: 0.1 °C

Temperature - Type T TC (Cu-CuNi)
Measuring range: -200 to +400 °C
Accuracy: ±(0.5 °C + 0.5 % of mv) °C
Resolution: 0.1 °C

Temperature - Type J TC
Measuring range: -100 to +750 °C
Accuracy: ±(0.5 °C + 0.5 % of mv) °C
Resolution: 0.1 °C

Characteristics / technical specifications

• Model: testo 162 T3
• Product no.: 0572 1623
• Brand: Testo
• Type: Online temperature data logger with display
• Inputs: 2 inputs for external thermocouple probes (TC)
• Supported sensors: Thermocouples (TC) types K, T, J (see tables above)
• Data transfer: WLAN to testo Smart Connect / testo Saveris Cloud
• Integration: Compatible with testo Smart App and testo Smart Connect (Testo Data Monitoring license required)
• Power supply: 4 x AA AlMn batteries (included)
• System: Part of the testo 160 online data logger system (testo 160, testo 162, testo 164)
