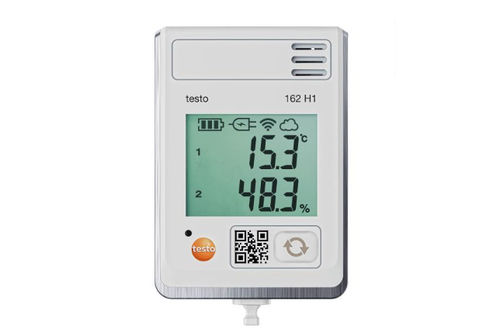

Temperature and humidity data-logger 162 H1

onlineNTCwith screen

Product overview
The testo 162 H1 online data logger is an easy-to-use climate data logger with display for monitoring temperature and air humidity via an integrated sensor. It is part of the testo 160 online data logger system (testo 160, testo 162, testo 164) and connects to the testo Saveris Cloud and the testo Smart App for centralised data viewing and analysis. A testo Data Monitoring licence is required to use the cloud functions.

Variant
The testo 162 T2 is a variant for temperature monitoring with two inputs for external NTC temperature probes.

Your advantages

• Limit-value alarms via push notification, e-mail or (optional) SMS
• Automated temperature and humidity monitoring with integrated sensors
• Connection to the testo Smart App for simple commissioning, push alerts and dashboard
• Automatic measurement documentation in testo Smart Connect
• Data transfer via WLAN (IEEE 802.11 b/g/n); multiple encryption methods supported
• On-site visual inspection thanks to the large display

Delivery scope

• Online data logger testo 162 H1
• Micro USB cable
• Wall bracket with lock
• Batteries (4 x AA AlMn)
• Quick guide
• Test protocol

Technical data (extract)
Temperature - NTC
Measuring range: -30 to +50 °C
Accuracy: ±0.5 °C ±1 Digit
Resolution: 0.1 °C

Humidity - Capacitive
Measuring range: 0 to 100 %rH (non-condensing)
Accuracy: ±2.0 %rH (35 to <65 %rH); ±3 %rH (65 to <90 %rH); ±5 %rH (90 to 100 %rH); ±1 %rF hysteresis; ±1 %rF/year drift
Resolution: 0.1 %rH

General technical data
Weight: 240 g
Dimensions: 115 x 82 x 31 mm
Operating temperature: -30 to +50 °C
Protection class: IP30
Memory: 10,000 values per channel
Battery life: approx. 12 months
Measuring/communication rate: configurable 1 min to 24 h
WLAN: IEEE 802.11 b/g/n; supports WPA2 Enterprise/Personal, WPA, WEP

Specifications

• Model: testo 162 H1
• Product no. / SKU: 0572 1624
• Integrated sensors: temperature (NTC) and capacitive humidity
• Optional variant: testo 162 T2 with 2 NTC inputs for external probes
• Measuring ranges: Temperature -30 to +50 °C; Humidity 0 to 100 %rH (non-condensing)
• Key accuracies: Temperature ±0.5 °C ±1 Digit; Humidity ±2.0 %rH (typical range)
• Resolution: Temperature 0.1 °C; Humidity 0.1 %rH
• Memory: 10,000 values per channel
• Battery: 4 x AA (included), life approx. 12 months
• Protection class: IP30
• Dimensions / Weight: 115 x 82 x 31 mm / 240 g
• Measuring and communication rate: configurable from 1 minute to 24 hours
