The microwave moisture measurement system is designed as a small compact laboratory instrument that can also easily be used at-line. The display is directly attached to the sensor for optimized space conditions. The MW 1150 is set up and calibrated via PC connection. It enables frequent measurements at a reasonable cost.
The system provides exact and reliable measurements in less than one second. The results are displayed on a 5.7” LCD monitor. Up to 250 readings can be stored internally for 25 different products.
Supported product temperatures, ranging from 5°C to 60°C, are read using an optional external Pt100 or infrared temperature sensor and are compensated by optional using an automatic thermally stabilized calibration.
BRIEF DESCRIPTION

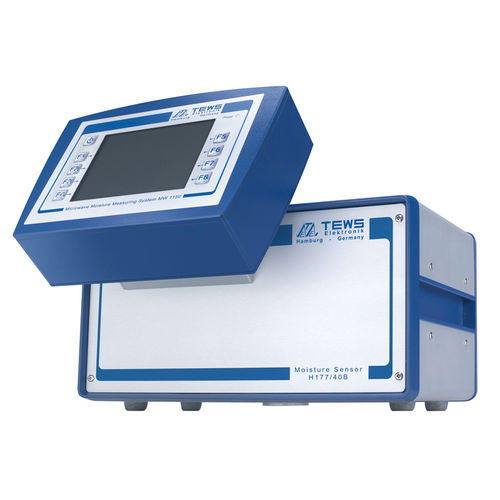

Laboratory Instrument MW 1150.
The MW 1150, the measurement instrument for routine measurements in the laboratory or At-line. Clear, easy to operate, and dependable when measuring. Using a connectable P1150 Printer the results can be printed directly and documented. With the “TEWS Moisture View Lite” software the MW1150 can be easily calibrated using the PC.
