Robotized palletising system Stax

layergantryautomated

Product overview
Stax is a series of robotic palletizing systems for semi-automated to fully automated palletizing of homogeneous, in-line, layer-arranged and mixed pallets and roll containers. Automated palletizing robots arrange products according to predefined patterns and prepare loads for dispatch, including operation in low-temperature refrigerated environments.

Benefits

• Minimizes manual handling through semi- to full automation, enabling near zero-touch store replenishment.
• Modular scalability from semi-automatic modules to fully automated robot systems allows tailored adaptation to operational needs.
• Process optimization through direct palletizing onto target loading equipment and optional integrated film wrapping reduces intermediate steps.

Product highlights

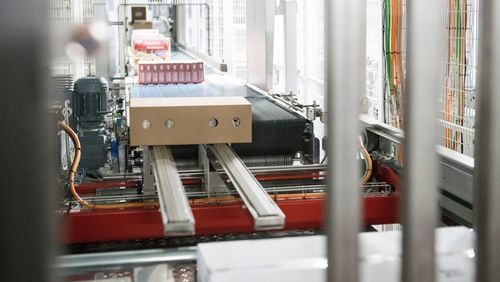

• Loading fingers: fast and gentle handling with density-optimized stacking patterns.
• Integrated film wrapper: optional inline wrapping for shipment preparation.
• Pallet change during wrapping: supports continuous high throughput.

Available configurations

• Autostax: fully automatic mixed-carton pallet loading; load dimensions up to 787.4 x 609.6 mm; performance up to 750 cartons/hour.
• SlotStax: semi-automatic pallet loading (automatic provision, manual loading); handles cartons, totes, trays; load dimensions up to 787.4 x 609.6 mm; performance up to 1,200 units/hour.
• Multiple-axes Gantry Robot: fully automatic with various gripper heads; configurable as a gantry with 2–5 axes; load dimensions up to 1193.8 x 990.6 mm; performance up to 600 cycles/hour.
• Layer Palletizer: fully automatic layer palletizing for cartons, totes and trays; load dimensions up to 787.4 x 609.6 mm; performance up to 200 layers/hour.
• TowStax: semi-automatic palletizing (automatic provision, manual palletizing); load dimensions up to 787.4 x 609.6 mm; performance up to 1,000 units/hour.

Technical specifications

• Series: Stax — modular palletizing systems from semi- to fully automated.
• Applications: full-case palletizing, store replenishment and mixed-load handling; suitable for cold-store environments.
• Handling technologies: loading fingers and various gripper heads; density-optimized stacking patterns.
• Optional equipment: integrated film wrapper, pallet change during wrapping.
