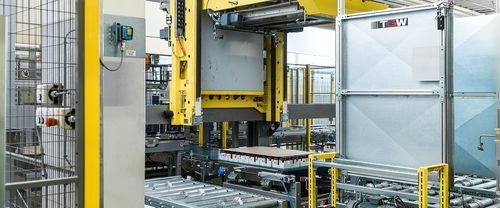

Layer depalletizer DeStax

robotizedfor cartonsfor containers

Overview
A seamless goods receipt process sets the stage for efficient material flow in a distribution center. The DeStax product range provides semi-automated and fully automated depalletizing systems to unload pallets and dispatch items to their correct destinations using warehouse automation technologies.

DeStax range
Modular solutions designed for inbound logistics to handle cartons, totes and trays across a variety of throughputs and operating conditions.

Features

• Vacuum and mechatronic gripping mechanisms for safe, repeatable unloading
• Fully automatic slip-sheet removal
• Ground support structures to protect heavy cartons during unloading

Add-ons

• Tray-loading components
• Inter-layer removers
• Alignment units

Benefits of DeStax

• Reliability: Fast, gentle handling reduces product damage and increases uptime.
• Flexibility: Semi- and fully automated options plus modular add-ons to fit operational needs.
• Versatility: Designed to operate in refrigerated warehouses down to -25°C and in high-humidity or dusty environments.
• Workplace safety: Automation reduces manual lifting and related injury risk.

DeStax Product Range (models & capabilities)

• Splitex: Fully automated unloading with lateral suction grippers; handles cartons, totes and trays; maximum load dimensions 609.6 x 406.4 mm; up to 1,800 units/hour.
• Multiple‑Axis Gantry Robot: Fully automated unloading with interchangeable gripper heads; 2–5 axis gantry options; maximum load dimensions 1193.8 x 990.6 mm; up to 600 cycles/hour.
• Layer Depalletizer: Fully automated layer unloading; handles cartons, totes and trays; maximum load dimensions 787.4 x 609.6 mm; up to 1,200 units/hour.
• TowDeStax: Semi-automated unloading; handles cartons, totes and trays; maximum load dimensions 787.4 x 609.6 mm; up to 1,000 units/hour.
• DeStacker: Fully automated tote-tower destacking; maximum load dimensions 609.6 x 406.4 mm; up to 800 totes/hour.
• Industrial Warehouse Robots: Fully automated handling with multiple gripper heads; handles cartons, totes and trays; maximum load dimensions 1193.8 x 990.6 mm; up to 400 cycles/hour.

Technical specifications

• Product family: DeStax (semi-automated and fully automated depalletizing solutions)
• Handling: cartons, totes, trays
• Gripping technologies: vacuum and mechatronic grippers; interchangeable gripper heads available
• Slip-sheet handling: fully automatic slip-sheet removers available
• Ground support: protective ground support for heavy cartons during unloading
• Environment: operable in refrigerated warehouses down to -25°C; suitable for high-humidity and dust-heavy environments
• Throughput / cycle rates (model dependent): Splitex up to 1,800 units/hr; Layer Depalletizer up to 1,200 units/hr; TowDeStax up to 1,000 units/hr; DeStacker up to 800 totes/hr; Multiple‑Axis Gantry Robot up to 600 cycles/hr; Industrial Warehouse Robots up to 400 cycles/hr
• Maximum facilitated load dimensions (model dependent): Splitex 609.6 x 406.4 mm; DeStacker 609.6 x 406.4 mm; Layer Depalletizer & TowDeStax 787.4 x 609.6 mm; Multiple‑Axis Gantry Robot & Industrial Warehouse Robots 1193.8 x 990.6 mm
• Optional add-ons: tray-loading components, inter-layer removers, alignment units
• Deployment: modular design for integration into inbound logistics for fast, efficient and safe goods receipt
