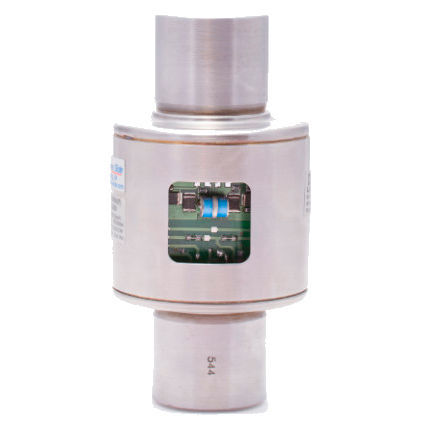

Compression load cell T34D

canisterdigitalfor calibration

The T34D is a digital compression column stainless steel load cell with a self-centring rocker column design. It has an internal state-of-the-art microprocessor that improves accuracy, resolution and corner correction adjustment. Individual communication with the weight indicator, or a PC, allows faster fault finding and load cell replacement. It is especially suitable for use in truck scales/weighbridges thanks to its OIML C4 approval, robust design, proven rotation stop and rodent resistant (anti-rat) polyurethane cable. With a fully welded and hermetically sealed construction, protected to IP68/IP69K, and integral lighting protection as standard, it is simple to install and has become the benchmark load cell solution for vehicle scales. The mounting cups are available in nickel plated steel or stainless steel. For use in aggressive environments where stress corrosion or acid attack is a potential problem, a special Parylene coating can be specified as an option. In high temperature environments, an optional variant for use up to +150 °C is available. Key features: Capacity range from 15,000kg to 60,000kg Stainless steel construction Built-in microprocessor Digital RS485 interface for simpler and faster pre-corner adjustment, system calibration, fault finding and maintenance Legal-for-trade approval to OIML R60 C4 (4000 divisions) - available on special request only Fully welded and hermetically sealed stainless steel load cell, protected to IP68/IP69K Simple installation with self-centring design In-built surge arrestors (GDTs) for lightning protection as standard Operating temperature range: -30 °C to +70 °C
