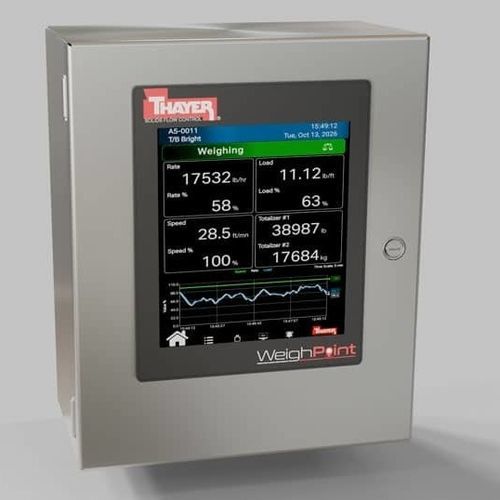

Digital weight indicator WeighPoint®

with LCD graphic displaywith touchscreenpanel-mount

Product overview
Thayer Scale’s WeighPoint® Integrator is a dual-processor, panel-mount weighing integrator with an 8-inch color touchscreen HMI designed for continuous operation in harsh industrial environments. Its modular architecture supports flexible installation planning and remote operator access via PC or mobile device. Communication options include MODBUS/TCP, Ethernet/IP and Profinet. A field-mounted scale module provides high-resolution digitizing of load and speed and links to the main module via CANBus to preserve data fidelity. The dual-processor main unit separates display rendering from real-time control tasks for stable operation. The system is intended for conveyor and belt-weighing applications and integrates with Thayer Scale’s RF belt scales and weigh belt feeders for optimized weighing performance.

WeighPoint® Innovative Capabilities

• Intuitive graphical 8-inch touchscreen HMI for efficient operator navigation and control
• Configurable display and reporting settings including live trends for process monitoring
• Dual-processor architecture for improved responsiveness and stable communications
• Modern processor and hardware choices to reduce future obsolescence risk
• Enhanced proprietary weighing and control algorithms for accurate material measurement
• Multiple configurations to support preferred control architectures
• Designed to support Industry 4.0 use cases including predictive maintenance and cloud analytics
• Advanced security management features

WeighPoint® Integrator Key Design Features

• Modular configurations to facilitate diverse installation requirements
• User-friendly interface giving direct access to Thayer Scale’s library of algorithms and functions
• Bright 8-inch (203.2 mm) color touch-screen display (1024 x 768, XGA) for high visibility
• Operating temperature range: -20 to 60 °C (storage: -30 to 70 °C)
• 4 mm Teflon™-free laminated safety glass; compatible with user-installed anti-glare protector
• Dual-processor main unit offloads real-time control to a separate core while maintaining high display performance
• Access to minimally damped data streams to optimize process control
• Supports up to four load cells (strain gauge or LVDT)
• Supports incremental encoder, ring gear or accelerometer velocity sensors
• Field-mounted scale module provides high-resolution digitizing of load and speed
• 24-bit A/D converter
• Real-time operating system
• Expansion modules available for additional I/O
• Multiple fieldbus interface options for connectivity to host supervisory systems
• Programming parameter tool tips for easier commissioning
• Comprehensive user-configurable diagnostic logs and reports, including automatic system log entries and event historians

Specifications

• Model name: WeighPoint® Integrator
• Display: 8-inch (203.2 mm) color touch-screen, 1024 x 768 (XGA)
• Touchscreen safety glass: 4 mm Teflon™-free laminated
• Operating temperature: -20 °C to 60 °C (storage: -30 °C to 70 °C)
• Processor: Dual-processor main unit (separate core for real-time control)
• Scale digitizing: Field-mounted scale module with high-resolution digitizing of load and speed
• Scale-to-main communication: CANBus
• A/D conversion: 24-bit A/D converter
• Load cell support: Up to 4 load cells (strain gauge or LVDT)
• Velocity sensor support: Incremental encoder, ring gear, or accelerometer
• Communications: MODBUS/TCP, Ethernet/IP, Profinet (and other fieldbus options)
• Operating system: Real-time operating system
• Installation: Panel-mountable HMI; modular configurations and expansion modules for additional I/O
• Remote access: Operator interface accessible via PC or mobile device
• Designed applications: Conveyor and belt weighing; integration with Thayer Scale’s RF belt scales and weigh belt feeders
