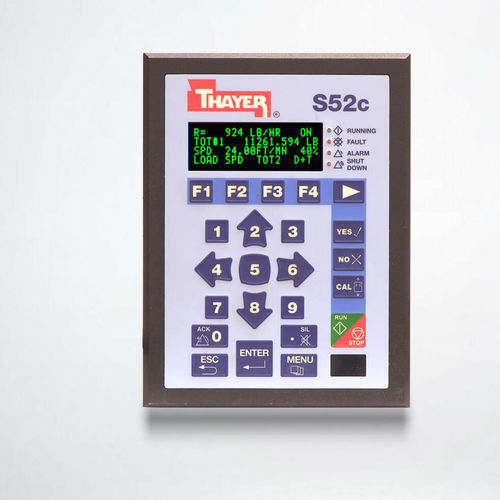

Loss-in-weight system controller S52c

Overview
The S52c weigh-belt and Loss-In-Weight controller provides straightforward setup, calibration and maintenance via an intuitive menu. Built-in software checks reduce operator error and simplify commissioning.

Function
The S52c controls and monitors material flow on weigh-belt and Loss-In-Weight feeder systems by measuring load and speed. Weight is processed as mass per length and speed as length per time to deliver continuous control of target flow rates or set-points. In Loss-In-Weight mode the controller calculates instantaneous flow and cumulative totals from feeder weight change. Speed input supports volumetric control, refill logic and disturbance compensation. Operational data is displayed locally and can be communicated over fieldbus.

Key Modes / Applications

• Weigh-belt controller
• Loss-In-Weight feeder controller
• Batch controller
• Compatible with strain gauge and LVDT load cells

Input Power Requirements

• Voltage: 120–240 VAC
• Frequency: 50–60 Hz
• Phase: Single phase
• Power consumption: < 43 W
• Supply protection: Fused

Environmental Requirements

• Area classification: Non-hazardous
• Operating temperature: -10 to +65 °C (14 to 149 °F)
• Operating humidity: 10 to 90% non-condensing
• Storage temperature: -20 to +85 °C (-4 to 185 °F)
• Storage humidity: 5 to 95% non-condensing
• Operational altitude: up to 2000 m
• Storage altitude: up to 3000 m (70 kPa)
• Cooling: Natural convection
• Pollution degree: 2

Standard Dimensional Requirements

• Open chassis: IP23, 8.0" H x 6.0" W x 4.5" D (203.2 x 152.4 x 114.3 mm)
• Enclosed: IP66, 11.81" H x 9.84" W x 5.91" D (300 x 250 x 150 mm)

Agency Approvals

• Underwriters Laboratories: UL File #E208487

Standard Input/Output Specifications

• Analog input: 2-wire loop powered, 4–20 mA typical (30 mA max); input impedance 169 Ω; voltage drop 3.38 V typical (5.1 V max); 22-bit resolution; AI-1 programmable
• Analog output: Isolated 4–20 mA into 750 Ω max, sourcing; +24 VDC compliance; 0–24 mA range; 16-bit resolution; AO-1 programmable
• Digital inputs: Dry-contact closures; sourcing +12 VDC with ≥10 mA sink; DI-DS drive status; DI-1/2/3 programmable
• Digital outputs: Isolated relay outputs DO-1/2 Form A (programmable); DO-3 Form A solid-state relay 240 VAC/VDC, 100 mA max; Remote totals Form A solid-state relay 240 VAC/VDC, 100 mA max

Specifications / Technical Data

• Model: S52c
• Product types: Weigh-belt controller, Loss-In-Weight feeder controller, Batch controller
• Supported load cells: Strain gauge and LVDT (plus speed sensors)
• Power: 120–240 VAC, 50/60 Hz, single phase, <43 W
• Enclosure options: IP23 open chassis or IP66 enclosed
• Operating range: -10 to +65 °C; storage -20 to +85 °C
• Altitude: operational to 2000 m; storage to 3000 m
• I/O: 4–20 mA analog I/O, loop-powered AI, dry-contact DI, isolated relay and SSR DO
• Cooling: Natural convection
• Agency: UL File #E208487
