Overview

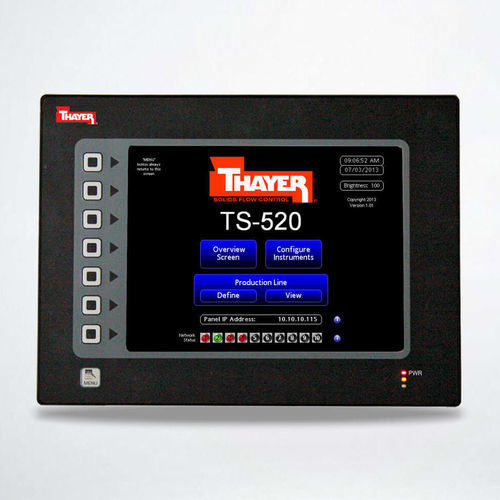

The TS-520 is a graphic Operator Interface Terminal designed to monitor and control THAYER weigh feeders. It provides a touchscreen graphical interface with trend visualization, statistical control, diagnostics and recipe management for up to twelve (12) weigh feeders (configuration-dependent). Ideal for industrial weighing and feeding applications requiring centralized operator control and remote access.

Model
SINGLE and MULTI-FEEDER MODEL TS-520 GRAPHIC LCD OPERATOR INTERFACE TERMINAL WITH VGA DISPLAY AND TOUCHSCREEN

Product details
The TS-520 supports centralized monitoring and control of THAYER weigh feeders. Feeder metrics are displayed graphically with historical trends and user-configurable trending. The terminal includes on-screen recipe commands, one-touch help, full diagnostics and data logging to support production control and troubleshooting.

Features

• Connects up to ten (10) instruments (S52, Series 5200) over Ethernet network; supports up to twelve (12) feeders depending on configuration
• Configure and personalize up to eight separate product lines
• Multiple screen selection (production lines, individual instrument screens)
• Program each instrument individually over the network
• One-touch help for programming and setup
• Full diagnostics for each networked instrument
• User-configurable trending display for runtime variables
• Data logging and storage per instrument
• Remote viewing and operation via network connection
• Configuration and firmware stored in non-volatile FLASH memory
• 10.4″ TFT display
• Resistive analog touchscreen
• Ethernet port with remote web access and control
• Compact Flash for operating code and data storage
• NEMA 4X / IP66 front panel rating
• 24 V DC operation

Technical specifications

• Model: TS-520
• Supported instruments: S52, Series 5200
• Maximum feeders supported: up to twelve (12) THAYER weigh feeders (typical Ethernet configurations support up to ten (10) instruments)
• Display: 10.4″ TFT
• Touchscreen: Resistive analog touchscreen
• Network: Ethernet connection for instruments; remote web access, remote viewing and operation
• Data storage: Data logging capabilities; Compact Flash for OS and data; configuration/firmware in non-volatile FLASH
• Front panel rating: NEMA 4X / IP66
• Power: 24 V DC
