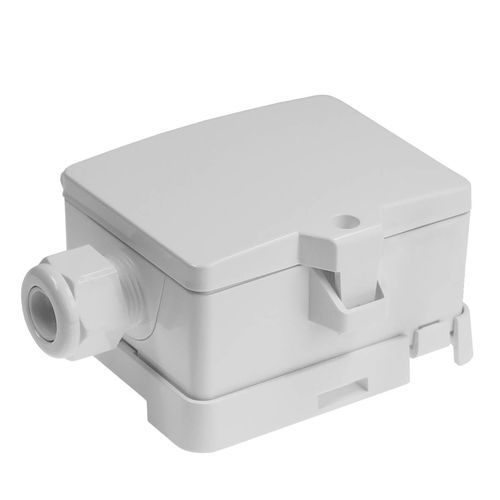

Outdoor air quality sensor LA+ active

CO2VOCrelative humidity

Air quality sensor for measuring CO2, mixed gas (VOC), optionally temperature and humidity outdoors and in areas requiring high IP protection class (e.g. underground stations, tunnels, exhibition halls, cold chains and greenhouses as well as in production halls and warehouses). For devices with CO2 and VOC, every output can be configured to be a mixed output (selectable ratio between CO2 and VOC). Devices with a relay option can be used as 2-point controllers or 2-stage controllers. • Application/type : Outdoor sensor • Purpose : Measure values • Measured values : temperature, relative humidity, absolute humidity, enthalpy, dew point, CO2, VOC, CO2/VOC mix • Interface : Active, 0..5 V, 0..10 V, 4..20 mA, Switch contact • Configuration : USEapp, uConfig, jumper, DIP switches, each output can be set to get a variable mix of CO2 and VOC by configuration via app or uConfig • Sensor : NDIR (non-dispersive, infrared) • Output voltage : 0..10 V or 0..5 V, 2x 0..10 V or 0..5 V, 3x 0..10 V or 0..5 V, 4x 0..10 V or 0..5 V, adjustable via jumper, live-zero configuration via app or uConfig, min. load 10 kΩ • Output current : 4..20 mA, 2x 4..20 mA, 3x 4..20 mA, 4x 4..20 mA, max. load 500 Ω • Output switch contact : 2x floating contact NO for 24 V ~ or 24 V = / 3 A • Operating range temperature (°C) : 0..+50 • Output signal temperature : scaling analogue output, 0..+50 °C (default setting), selectable from 4 temperature ranges -40..+60 | 0..+50 | -20..+80 | -15..+35 °C, optionally configurable • Operating range humidity : max. 85% rH short term condensation • Accuracy temperature : ±0,5 K (typ. at 21 °C), within default measuring range, offset setting via app or uConfig
