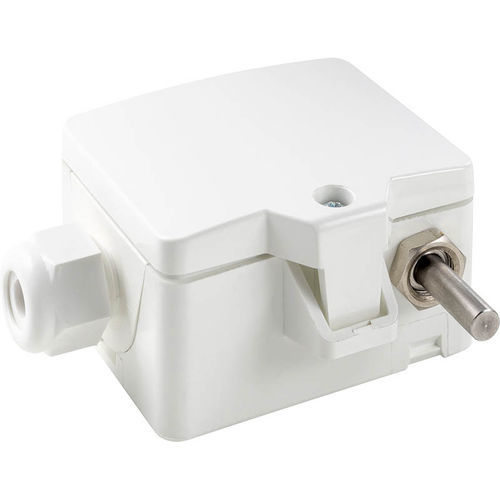

Outdoor temperature sensor AGS55+ passive

Pt100Pt1000NTC

Outdoor temperature sensor with external stainless steel probe (fast response) for measuring temperature in outdoor areas, cold rooms, greenhouses, production plants and warehouses. A hinged cover and tool-free wiring as well as removable cable entries ensure a quick and easy installation. • Application/type : Outdoor sensor • Purpose : Measure values • Measured values : temperature • Interface : Passive • Configuration : jumper • Sensor : SI-Protection against permeation of humidity and mechanical stress (e.g. vibration), Pt1000 DIN cl. B, Pt100 DIN cl. B, Pt1000 1/3 DIN, Pt100 1/3 DIN, Ni1000 DIN cl. B, Ni1000TK5000, NTC10k, NTC10k Precon, NTC10k Carel, NTC20k, NTC1,8k, NTC5k, LM235Z, KTY81-110, KTY81-121, KTY81-122, KTY81-210, DS18B20 1-wire, FeT/Staefa, passive • Accuracy temperature : ±0,3 K (typ. at 0 °C), ±0,4 K (typ. at 0 °C), ±0,2 K (typ. at 25 °C, temperature dependend), depending on length of connection wire and sensor, potentiometer for offset adjustment • Material in touch with media : Sensor probe, Ø=6 mm, stainless steel V2A (1.4305), length 25 mm, for faster response • Enclosure : USE-S, impact- and shock-resistant enclosure with quick-release cover, PC • Colour : pure white • Protection (IP) : IP65, according to EN 60529 • Connection : removable cable entry flextherm M20 for wire Ø=4,5..9 mm, removable plug-in terminal, max. 2,5 mm² • Connection cable : 2-wire, 3-wire, 4-wire • Delivery content : incl. mounting base enclosure USE-S pure white, incl. mounting set (screws and accessories) • Packaging : case packaging • Option enclosure : LCD 29x35 mm, RGB backlight
