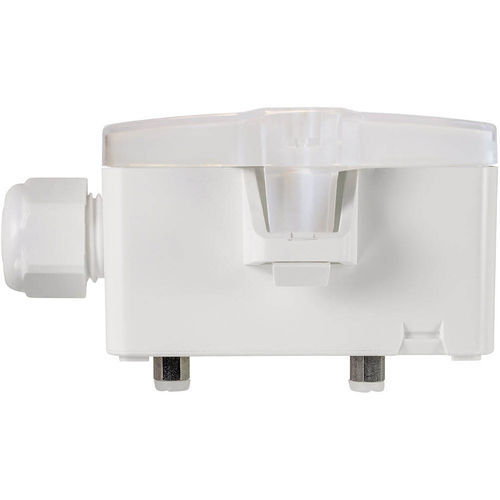

Water leakage detector LS02+ active

for flat roofs

Leakage detector with relay output and two signalling LEDs designed for alarm, control and monitoring applications of containers, false floors, suspended ceilings or rooms for preventing unintended ingress of water. The sensor can be adjusted to different heights so that the response time of the sensor can be adapted to the water level that is to be detected. • Application/type : Leakage detector • Purpose : Measure values • Measured values : leakage • Interface : Switch contact • Sensor : 2x2 detector electrodes • Output switch contact : changeover contact, 1 A resisitve load, max. 24 V, floating • Operating range temperature (°C) : -35..+70 • Operating ranges temperature (°C) : -35..+70 • Operating range humidity : max. 85% rH short term condensation • Power supply : 15..24 V = (±10%) SELV, 24 V ~ (±10%) SELV • Power consumption : typ. 0,6 W (24 V =), 1,5 VA (24 V ~) • Material in touch with media : stainless steel V2A (1.4305) • Enclosure : USE-S, impact- and shock-resistant enclosure with quick-release cover, PC • Colour : pure white, transparent cover • Protection (IP) : IP65, according to EN 60529 • Connection : removable cable entry flextherm M20 for wire Ø=4,5..9 mm, removable plug-in terminal, max. 2,5 mm² • Mounting : level compensation through adjustable contacts • Delivery content : incl. mounting base enclosure USE-S pure white, incl. fixing kit rawlplugs and screws (2x each) • Packaging : case packaging • Catalogue table : Leakage detector
