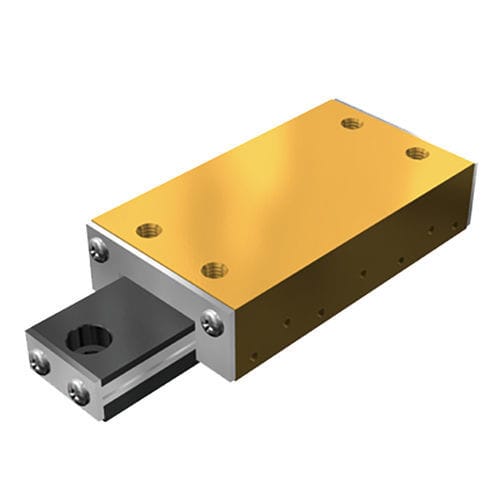

Ball bearing guideway LS seriescompactcorrosion-resistant
Add to favorites
Compare this product
Characteristics
- Technology
- ball bearing
- Other characteristics
- compact, corrosion-resistant
- Rail length
Max.: 78.7 mm
(3.1 in)Min.: 28.7 mm
(1.13 in)- Rail width
14.2 mm, 19 mm
(0.56 in, 0.75 in)- Load
Max.: 275 N
Min.: 39.2 N
Description
Model LS is a unit-type linear system for finite motion that has a structure where balls are arranged between the base and the slider via a needle roller raceway.It is incorporated with a stopper mechanism,thus to prevent damage deformation caused by collision between the cage and the endplate.
Note) Do not use the stopper as a mechanical stopper.
