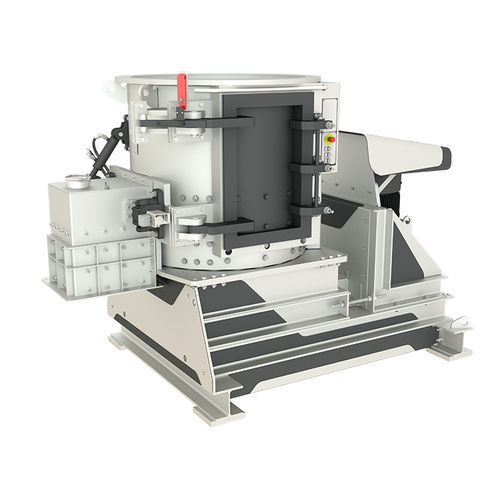

Chain mill TQZ Series
verticalfor plasticsstraw

chain mill
chain mill
chain mill
chain mill
chain mill
chain mill
Add to favorites
Compare this product


Product applications
for plastics, straw, waste, for aluminum
Other characteristics
for recycling
Rotational speed

500 rpm, 600 rpm, 700 rpm, 900 rpm, 1,200 rpm
(3,142 rad.min-1, 3,770 rad.min-1, 4,398 rad.min-1, 5,655 rad.min-1, 7,540 rad.min-1)


17 t/h, 25 t/h
(10 lb/s, 15 lb/s)

Motor power

75 kW, 90 kW, 160 kW, 250 kW, 315 kW
(101.97 hp, 122.37 hp, 217.54 hp, 339.91 hp, 428.28 hp)

Machine length

2,900 mm, 3,100 mm, 5,160 mm, 5,640 mm, 6,260 mm
(114 in, 122 in, 203 in, 222 in, 246 in)

Machine width

1,800 mm, 3,660 mm, 4,490 mm
(71 in, 144 in, 177 in)

Machine height

1,890 mm, 2,200 mm, 2,770 mm, 3,370 mm, 3,380 mm
(74 in, 87 in, 109 in, 133 in, 133 in)

Machine weight

5 t, 6 t, 15 t, 23 t, 28 t
(6 us ton, 7 us ton, 17 us ton, 25 us ton, 31 us ton)


Insightful findings The TQZ Turbo-Crusher shows its strengths wherever a wide variety of composite materials have to be broken down gently and efficiently. It can also convince with fractions rich in impurities. The TQZ Turbo-Crusher is ideally suited for the following areas of application, among others: Energiepflanzen (Mais, Gras, Sonnenblumen, Zuckerrüben etc.) Organic waste Electrical and electronic waste Cooling units Aluminium composites Plastic-metal composites Chippings Residual fractions of household waste (ferrous/non-ferrous) Catalytic converters MBA scraps GRP waste Advantages Demand-driven offer: Working widths from 900 mm to 2,500 mm Reliable separation of material fractions and environmentally sensitive components High throughput of up to 17 t/h (25 t/h with organic applications) Drastically reduced wear costs Chain tools can be replaced in minutes Insensitive to impurities Closed system Different driving modes (batch and continuous operation) Blitzschneller, schonender Aufschluss unterschiedlichster Verbundstoffe Material Fractions Printed circuit boards Aluminium Copper Iron Stainless steel Transformers Sheet metal parts Polyurethane Slag dust Turning chips Fibreglass plastics Organic waste Refrigerators Vacuum cleaners Washing machines etc. Revolutionary chain reaction The first choice for cooling unit recycling With its revolutionary shredding technology, the original TQZ Turbo-Crusher sets standards in the shredding of white goods, electrical waste & Co. In this recycling machine, chains take over the shredding and disintegration work instead of the conventional blades.
