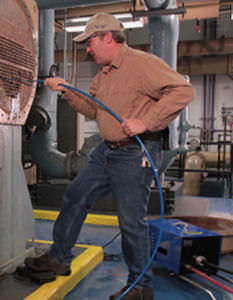

The Wils-Away™ 4000 Pneumatic Tube Cleaning System can go anywhere electric motors are not allowed because it is air-driven. Ideal for removing medium to hard deposits, it also provides forward/reverse drive via remote foot pedal. With the Air-Driven units you can control the speed of the shaft and casing for effective cleaning action.
Applications:
Cleaning Tubes in Heat Exchangers, Condensers, Chillers, Absorbers, Water Heaters, Coolers and Other Small Diameter Pressure Vessels
3/8 to 1 1/2-Inch (9.5 to 38.1mm) Outer Diameter Tubes
Removing Medium to Hard Deposits
Ideal Cleaning System when Electric Power is Not Available
Air Motor Enables Operator to Control Speed of Cleaning Head and Shaft & Casing Rotation
Specifications:
Dolly-Mounted Drive Unit 58 lbs.; 12"H x 23"W x 11 1/2"D
(26Kg; 305 x 584 x 292mm)
Speed 500 to 3,000 rpm
Air Consumption 40 CFM @ 90 psi (WAW-4000)
Power 4 HP (WAW-4000)
Accessories Air Hose 3/8-Inch Minimum
1/2-Inch - 50 Feet
Part No. 9600-0121
Wils-Away™ Pneumatic Kit Includes:
Dolly-Mounted Unit with Tool Compartment
Flexible Shaft & Casing
Foot Pedal
6 Nylon Spiral Brushes
-or-
Expanding Bronze Brush and Spare Refill Set
Service Manual SM-226 (WAW-4000)
