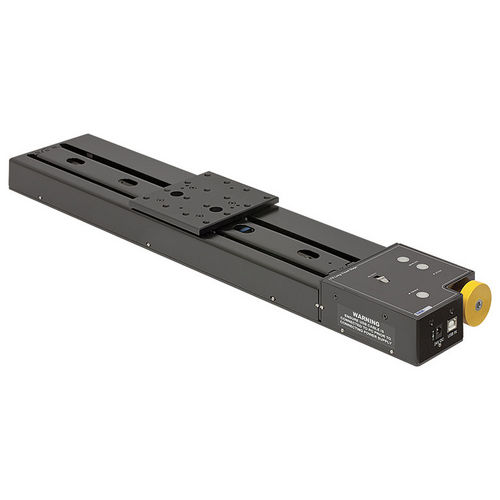

Linear positioning stage LTS Series

motorized1-axislong-travel

Low Profile Long Travel Stages with Integrated Controller Control via Manual Keypad or Remote PC 150 mm and 300 mm Travel Range Maximum Speed of 15 mm/sec Horizontal Load Capacity up to 15 kg Integrated Limit Switches Power Supply Included The LTS Series stages are stepper motor driven long travel stages with ranges of 150 mm and 300 mm. They feature an integrated electronic controller that can be controlled remotely using a PC or manually via the buttons and velocity potentiometer on the control key pad. Parameter settings can be adjusted on the PC and stored in non-volatile memory within the unit itself. When the unit is next powered up these settings are applied automatically. This is particularly useful when the stage is being used manually in the absence of a PC and USB link. The stages are lightweight, compact, and robust with high performance over the full travel range. With a load capacity of up to 15 kg, they are highly suited to applications such as interferometry and M2 measurements and are compatible with our range of optomechanical and translation stages. The rigid steel construction and low profile design make these stages ideal for applications where space is limited. Integrated magnetic limit switches allow homing and overdriving protection in both directions. A precision ball screw delivers smooth virtually noise free movement.
