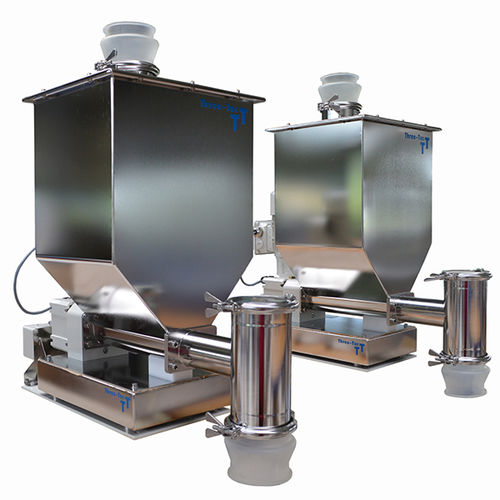

Volumetric dosing feeder ED 65

single-screwverticalhorizontal

The ED 65 volumetric single-screw feeder without discharge aid/bridge breaker, with intervention protection and horizontal or vertical discharge pipe is particularly suitable for the feeding of free-flowing products with good flow properties, such as powders, flakes, fibers, granulates and agglomerates up to 10 mm particle size. Technical data Throughput with AC three-phase motor : 160-2'000 l/h Throughput with servo motor : 6.7-4'000 l/h Ø Metering tools : 65 mm Weight : depending on the execution Speed with AC three-phase motor : up to 560 min-1 (depending on gearbox) Speed with servo motor : 4-750 min-1
