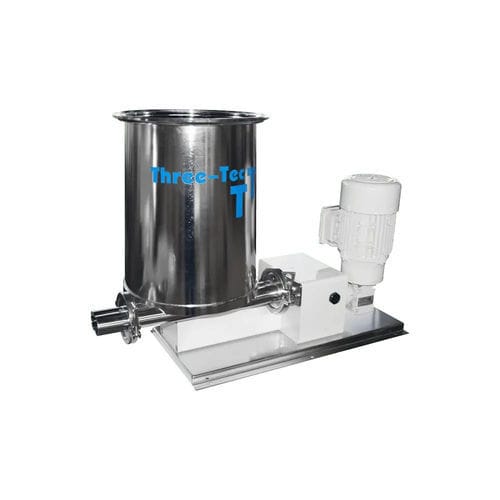

Volumetric dosing feeder ZD 32 FB

twin-screwwith flat-bottompowder

The ZD 32 FB volumetric flat-bottom twin-screw feeder with bottom scraper is particularly suitable for the feeding of poorly flowing and free-flowing powder, which tends to clump or to cake on the hopper wall, or which has a strong tendency to form bridges. The bottom scraper discharges the bulk material gently and completely. Technical data Throughput with AC three-phase motor : 8.7 to 2'460 l/h Throughput with servo motor : 2.6-3'135 l/h Diameter metering tools : 32 mm Weight : ≈ 55 kg Dosing hopper capacity : 14.5 l Speed with AC three-phase motor : up to 750 min-1 (depending on gearbox) Speed with servo motor : 4-750 min-1
