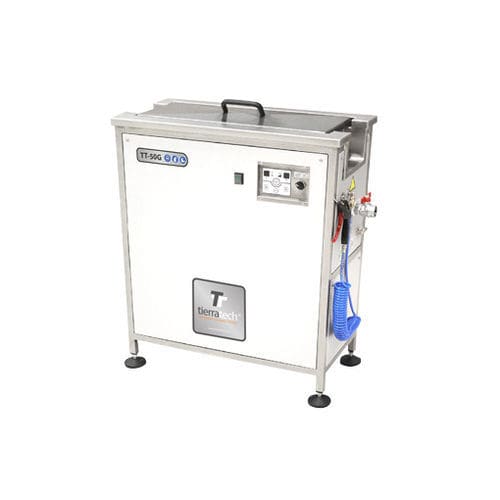

Ultrasonic cleaning machine TT-50G

industrialcustomhigh-performance

• Power Supply: 240V • Heating element: 2x450W) ULTRASONIC CHARACTERISTICS • Ultrasonic power: 800W (1600W p-p) • 1 ultrasonic generator with an output power of 800W (1600W p-p) • Working frequency: 40 KHz sweep system ± 2% • 16 high-performance IBL piezo-electric transducers in titanium steel CONTROL PANEL • Main breaker • DEGAS system to degas water • Ultrasounds timer • Temperature selector • Power level selector: 50% - 100% FINISH AND ACCESORIES • Tank made of 0.07” in thick stainless stell AISI 316 • External panel in 0.03“ in thick fingerprint resistant steel • 0.78” in thick thermo-acoustic insulation • Rolling System: Support that allows to rotate the roller in a continuous way with 7.2W AC synchronous motor • 1” drain ball valve • Height-adjustable silentblock legs • Tank cover in stainless steel with pneumatic shock absorber • Air blow gun for drying the parts TECHNICAL DATA • Internal dimensions: 39.3” x 7.87” x 7.48” in • External dimensions: 51.2” x 15.7” x 36” in • Weight: 74.5 Lb • Maximum diameter of the roller in the area to be cleaned: Ø 5.9” in • Minimum diameter of the roller in the area to be cleaned: Ø 2.36” in • Minimum length of the area to be cleaned from the roller: 3.93” in • Maximum length of the area to be cleaned from the roller: 38.97” in • Maximum distance between roller supports: 40.5” in
