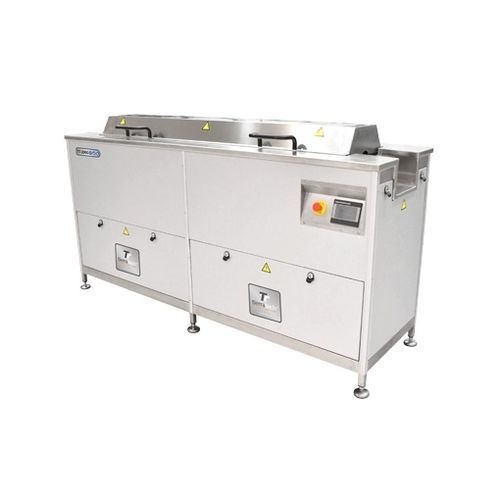

Ultrasonic cleaning machine TT-200G

industrialcustom

• Power Supply: 240V • Heating element: 7500W ULTRASONIC CHARACTERISTICS • Ultrasonic power: 2000Wp (4000Wp-p) • 1 ultrasonic generator with an output power of 2000Wp (4000Wp-p) • 2 submersibles emitters with a power of 1000Wp (2000Wp-p) made of 2.5 mm thick stainless steel AISI 316 steel. The emitter contains 20 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body • Working frequency: 40 KHz sweep system ± 2% CONTROL PANEL • 4.3” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems. Programmable weekly calendar • 6 outputs and 8 inputs temperature module PLC FINISH AND ACCESORIES • Tank made of 0.07” in thick stainless stell AISI 316 • External panel in 0.03“ in thick fingerprint resistant steel • 0.78” in thick thermo-acoustic insulation • Rolling System: Support that allows to rotate the roller in a continuous way with 180W AC synchronous motor • 1½” drain ball valve • Height-adjustable silentblock legs • Tank cover in stainless steel with pneumatic shock absorber • Air blow gun for drying the parts • Security overflow TECHNICAL DATA • Internal dimensions: 70.8"x 13.7” x 17.7” • External dimensions: 100” in x 26.3” x 41.5” • Weight: 551 Lb • Maximum diameter of the roller in the area to be cleaned:Ø 9.84” • Minimum diameter of the roller in the area to be cleaned: Ø 1.96” • Maximum length of the area to be cleaned from the roller: 62.9” • Maximum distance between roller supports: 68.1”
