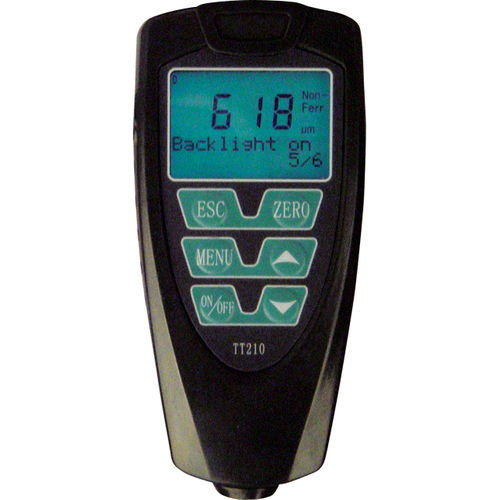

Coating thickness gauge TT210portableeddy currentmagnetic
Add to favorites
Compare this product
Characteristics
- Applications
- coating
- Type
- portable
- Technology
- eddy current, magnetic, magnetic induction
- Other characteristics
- continuous
- Measuring range
Min.: 0 µm
Max.: 1,250 µm
Description
Features:
Two measuring methods: magnetic induction (F) and eddy current (N)
Magnetic induction (F) method is used to measure the thickness of non-magnetic coating on ferrous metal
Eddy current (N) method is used to measure the thickness of non-conducting coating on non-ferrous materials
Automatic recognition of substrate
Automatic selection of measuring methods
5 statistical ways: Mean values / Max. values / Min. values / testing numbers.(No.) / standard deviations (S.DeV)
Upper-lower limit setting and sound alarm
Data output to printer or PC by RS232 cable
500 readings can be stored
2 measuring modes: continuous / single
2 stop ways: Manual/automatic
With software for data analysis
