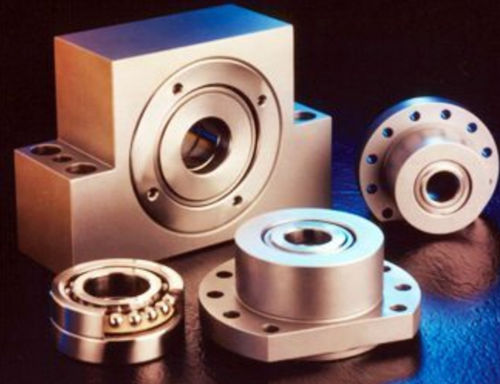

Flange bearing unit
cartridgesolid-blockball

flange bearing unit
flange bearing unit
Add to favorites
Compare this product


Characteristics

Type
flange, cartridge, solid-block
Rolling element
ball
Material
steel
Other characteristics
housed
Applications
for heavy loads, ball screw
Outside diameter

Max.: 145 mm (5.71 in)

Min.: 32 mm (1.26 in)

Inside diameter

Max.: 101 mm (3.98 in)

Min.: 12 mm (0.47 in)

Description

Ball Screw Support Bearing Our broad line of Timken® Fafnir® ball screw support bearings includes single- and double-row designs with a variety of mounting configurations. We offer flanged and non-flanged series for both standard and rotating nut mountings. Housed cartridge and pillow block units facilitate bolting to machine tool surfaces. Design Attributes: Materials include clean steel for longer service life. Incorporates tighter preload tolerances for chatter-free cutting and tighter width tolerances for easy fit without regrinding end caps. Innovative cage design permits additional balls for higher load capacity. Features ABEC 9/ISO P2 axial running tolerances to deliver maximum accuracy for precise tool positioning and repeatability. Double-row series has integral, low-torque contact seals to exclude contaminants for reliable operation and extended service life. Available in flanged (MMF) and nonflanged (MMN) series, simplifying installation for both standard and rotating nut mountings. Applications: Motion control for grinding, milling and machining centers
