Ball bearing

ball bearing
ball bearing
Add to favorites
Compare this product


Rolling element
radial, axial, angular-contact, single-row, double-row
Other characteristics
high-speed, with cage, high-precision, high-performance, corrosion-resistant
for agricultural applications, for the chemical industry
Inside diameter

Max.: 630 mm (24.8 in)

Min.: 2.5 mm (0.1 in)

Outside diameter

Max.: 150 mm (5.91 in)

Min.: 10 mm (0.39 in)


Max.: 0.75 mm (0.03 in)

Min.: 0.12 mm (0.005 in)

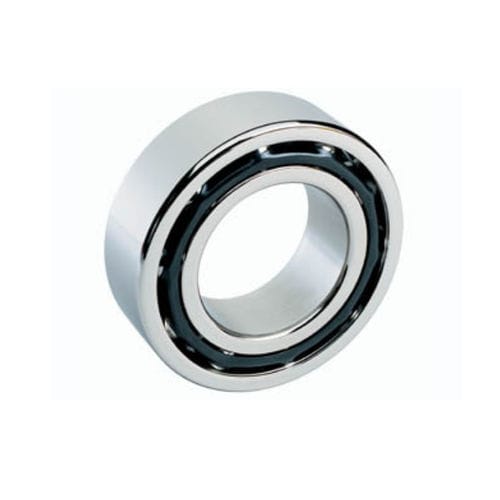

Angular Contact Ball Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row Conrad bearings can accommodate thrust in both directions. Size Range: Single-row: 10 mm – 150 mm (0.3937 in. – 5.9055 in.) bore Double-row: 12 mm – 150 mm (0.4724 in. – 5.9055 in.) bore Design Attributes: Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads. Expanded options include special lubricants, cage materials, preloads and coatings for additional corrosion resistance. Applications: Angular contact ball bearings are engineered for use in high-speed, high precision applications for: Agriculture Chemical General industry Utilities


No catalogs are available for this product.

See all of TIMKEN‘s catalogs
