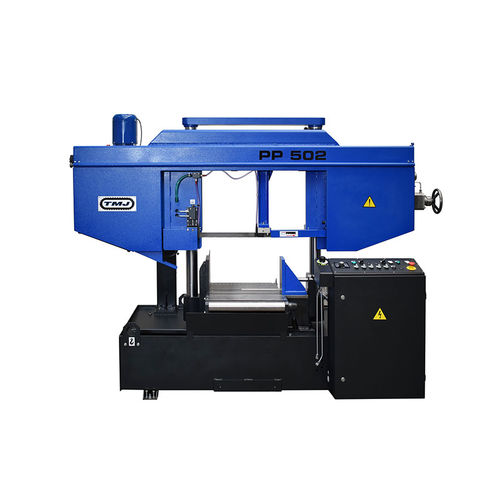

Band saw PP 502

for metalssemi-automaticvertical

Semi-automatic electrohydraulic double column band saw machine for metal dedicated for straight cuts. Two columns, stand and crossbar create a closed frame, which ensures perfect rigidity and therefore accurate and fine cut while using maximal technological conditions. saw blade [mm] 5370 × 41 × 1,3 motor [kW] 4 cutting speed [m/min 12–100 weight [kg] 1450 dimensions [mm] 2800 × 1260 × 1990 HYDRAULIC BUNDLE CLAMPING It enables clamping of material while cutting of bundle. It ensures reliable clamping by means of hydraulically controlled vertical vice working in a cycle with the whole machine. VARIABLE VICE PRESSURE It enables to regulate power of clamping while cutting of thin wall profiles. It helps to avoid deformation of material being cut and secures an accurate cut. MICRO SPRAY COOLANT SYSTEM It creates oil mist, which is injected into area of cut. It does replace common cooling fluid especially in case of sectional material cutting, where cooling fluid may leak out of the machine. SECOND FIXED VICE It secures by clamping a material being cut off.
