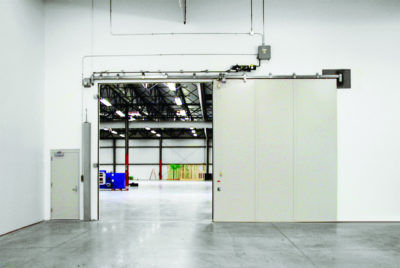

Sliding door 1000 & 2000

stainless steelsteelindoor

Designed for use in applications requiring economy in a manual door. Rugged and easy to install and maintain. Both models are custom manufactured and available in single slide or center parting with UL label ratings of 20 minutes to 4 hours. Standard features include an automatic close system with thermal heat detectors and low maintenance, heavy-duty hardware. Chase is the only manufacturer that has the ability to provide a fire door with a 12" head room clearance on special applications - please contact the factory for more information. FEATURES CONSTRUCTION Model 2000 Door Construction – Incorporates modular panel construction with a calcium silicate core, for a 250oF temperature rise rating, securely bonded to 18 gauge cold rolled face sheets and 18 guage interior channels. Model 1000 Door Construction – Incorporates modular panel construction with Kraft honeycomb core securely bonded to 18 gauge cold rolled face sheets and 18 gauge interior panels. Door Finish – Both doors are shipped prime painted with a high quality gray rust resistant paint. Optional finishes include galvanized with prime paint or stainless steel. Capping Channel – The panels are assembled with 14 gauge capping channel and a 10 gauge bottom guide roller channel. Track System – Both models are equipped with a weight type system with weight box,(control speed close optional) 12 gauge box track hardware and thru-wall linkage. All hardware is UL labeled and prime painted. Optional Track Hood is available in 18 gauge cold rolled prime painted steel or stainless steel. OPTIONS F1900 Operator with battery backup Pass doors Vision panels Track hoods Perimeter gasketing
