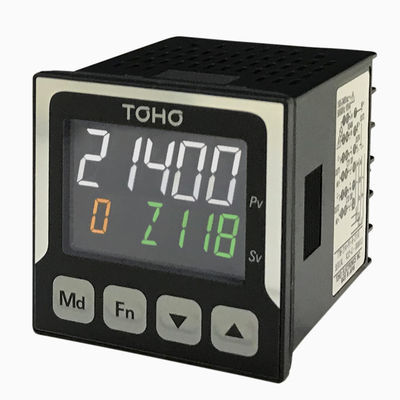

Digital temperature controller TTM-214
PIDcompact

Digital temperature controller - TTM-214 - TOHO ELECTRONICS Inc. - PID / compact
Digital temperature controller - TTM-214 - TOHO ELECTRONICS Inc. - PID / compact
Digital temperature controller - TTM-214 - TOHO ELECTRONICS Inc. - PID / compact - image - 2
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Display
digital
Type
PID
Other characteristics
compact
Maximum temperature

Max.: 2,999 °C
(5,430 °F)

Min.: -2,999 °C
(-5,366 °F)

Description

* A Digital Controller that inherits the basic specifications of TTM-214. * "Temperature Input (Z118)" and "Analog Input (Z119)" are also available as input types. * The external dimensions are compact with a length of 48 mm, a width of 48 mm, and a depth of 59.7 mm. * A High-Speed Sampling Cycle at 10 mS (0.01 seconds), which is suitable for high-speed change control. * Selectable from 10mS to 500mS * New Method Auto Tuning (calculate PID parameters that can cover a wide band) * Industry's highest 16-Point Correction Function (flexibly supports non-linear sensor output) * Event Output Counter (monitor display for event output ON time) * Simplified Program Control Function (program operation up to 8-steps program control) * Liquid Crystal Display (LCD with excellent visibility, high brightness white display)
