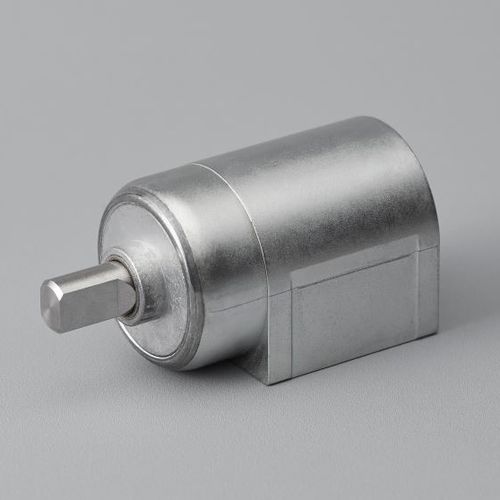

Rotary damper SR3 series

mechanicalfor machinessafety

HIGH-DURABILITY DAMPER, AUTOMATIC VARIABLE SPEED CONTROL Lifetime: 300,000 cycles Adjustable closing speed for various loads Damping torque: 0.8 to 1.1 N ･ m [Benefits] ✔High durability: TOK’s high-durability damper is 6 times stronger in comparison with our standard damper. It can be used up to 300,000 cycles. ✔Adjustable closing speed for various loads: Even if the weight of the object varies, closing speed can be made uniform by adjusting the torque of the damper automatically. ✔Adaptability for temperature change (Hydraulic-accumulator function): The hydraulic-accumulator is the mechanism that can absorb silicon-oil within the damper, as the oil expands and shrinks due to temperature fluctuations. With this mechanism the damper can be used in temperatures between -5 ℃ and 70 ℃. ✔Maintenance free: It is useful for a variety of applications with strict conditions such as aircraft and places where industrial equipment is used. ✔Application: Aircraft doors / Automotive console-box lids / Toilet seats / Lids for kitchen hoods / Piano lids
