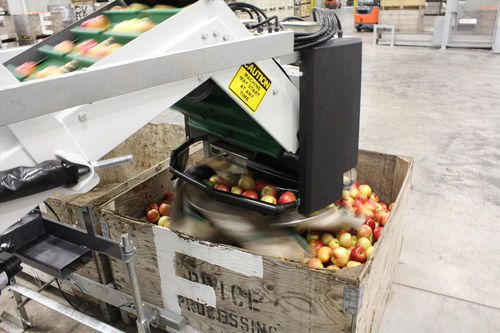

Fully-automatic filling machine Rotofiller

binfor fruitfor the food industry

Overview
This dry bin filling solution is designed for gentle, high-throughput filling of delicate fruit. The Rotofiller’s wide infeed belt and optimized geometry control bulk flow to bins while minimising handling stress on product.

USPs

• Gentle handling
• High throughput
• Industrial-duty design

Key benefits

• Available as a fully automatic bin filler, automatic swing-over dual bin filler or simple single bin filler to suit packing line layouts.
• Interchangeable head options: standard and soft heads for fruit up to 125 mm diameter; large head option for produce up to 170 mm diameter.
• Self-contained unit with 'Set and Forget' operation, minimising operator intervention.
• Compatible with most industry bin sizes and supplied with an integrated pooling conveyor as standard.
• Compact footprint delivering high throughput from a small floor area.

Designed gentleness and throughput

• Wide infeed belt (670 mm) for controlled, gentle product presentation.
• Optional variable speed-drive lets users maintain similar throughput (approx. 4 to 15 bins per hour) at lower belt speeds for gentler handling.

Practical advantages

• Integrated pooling conveyor supplied as standard to stabilise bin supply.
• Configurable for small and large produce: suitable for delicate Class 1 apples and pears; variant available for larger produce such as pomegranates and grapefruit.
• Small footprint reduces required floor area while maintaining production capacity.

Documents
Title: Rotofiller Brochure
Description: Rotofiller product brochure (English)
Size: 210.56 Kb

Technical specifications

• Model name: Rotofiller
• Manufacturer: TOMRA
• Machine types offered: fully automatic bin filler; automatic swing-over dual bin filler; simple single bin filler
• Head types: standard head; soft head; large head option
• Head size handling: up to 125 mm diameter (standard/soft heads); up to 170 mm diameter (large head)
• Infeed belt width: 670 mm
• Throughput: approximately 4 to 15 bins per hour (dependent on configuration and belt speed)
• Speed control: variable speed-drive option (available)
• Operation: self-contained, set-and-forget, no operator intervention required
• Compatibility: compatible with most industry bin sizes
• Standard inclusions: integrated pooling conveyor
• Footprint: compact (high throughput from small floor area)
