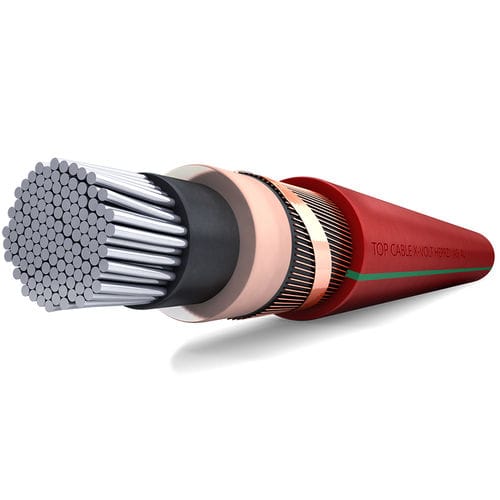

Power cable X-VOLT HEPRZ1 (AS) ALinsulatedflame controlflameproof
Add to favorites
Compare this product
Characteristics
- Type
- power
- Protection
- insulated, flame control, flameproof
- Configuration
- multi-strand
- Core material
- aluminum
- Applications
- distribution
- Number of wire
- single-conductor
- Norms
- IEC
- Other characteristics
- halogen-free
- Nominal voltage
Max.: 30,000 V
Min.: 12,000 V
- Temperature
Max.: 105 °C
(221 °F)Min.: -15 °C
(5 °F)- Cross-section
Max.: 1,000 mm²
(1.55 in²)Min.: 50 mm²
(0.08 in²)
Description
X-VOLT® HEPRZ1(AS) Aluminium cable for the transmission and distribution of electricity in a medium voltage network. Halogen-free cable with low smoke emission and no fire propagation properties. Safety cable (AS).
1. Conductor
Aluminium conductor, class 2, based on EN 60228 and IEC 60228.
2. Internal semiconductor
Screen over the conductor, made of thermosetting semiconductor material.
