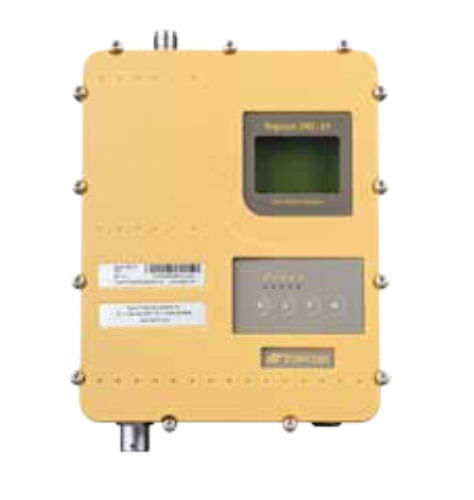

UHF radio module SRL-35

UHF radio module
UHF radio module
UHF radio module
Add to favorites
Compare this product


Characteristics

Options
UHF

Description

Configurable output power of up to 35 Watts Wide and tunable 70 MHz (403-473 MHz) operating range User-selectable channel spacing (12.5,20 or 25 kHz) Compatible with existing Topcon and 3rd party radio products such as Satel, Trimble, and Pacific Crest rover radios IP67 rating to withstand harsh environments Automatic prévention of overheating Multi-function LCD user interface Heavy-duty and Reliable The SRL-35 is an al-weather UHF base radio with configurable high power output (up to 35 W1) and a full 70 MHz tuning range. Designed for easy operation in demanding field conditions, the reinforced casing and connectors are fully waterproof and secure against dust (IP67). In addition to flexible output power and a wide tuning range, the SRL-35's channel spacing can set to 12.5,20 or 25 kHz with complementary protocol support to satisfy high-effidency narrowbanding* requirements. The unifs weather-proof LCD display dearfy indicates the current operating status, and the integrated keypad allows direct configuration of the current operating channel, power level, and radio protocols. Interoperability is provided for several 3rd party radios protocols induding SateL PDL, and TrimTalk5 formats. Dependable and Powerful The SRL-35 uses a Forward Error Correction (FEC) approach wfiich ensures dependable communication links and a minimum of data loss. At full power, communication distances of up to 80km can be achieved in good conditions. The SRL-35 can also fonction as a repeater using a second SRL-35 and doubling your operating range.
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
