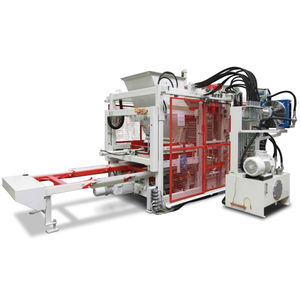

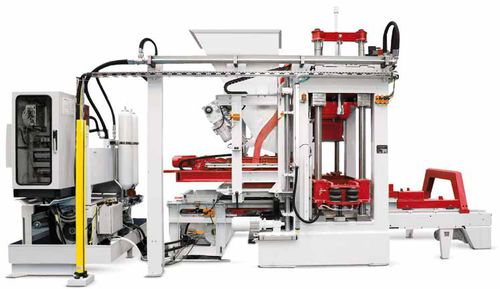

Concrete block making machine MULTIMAT RH 760

automatic

Machines of the RH 700 series are equipped with the proven M-technology. The production area is availble from 3 to 6 blocks per cycle. The high quality results derived from advanced vibration technology and height control exactness are now possible across a wide range of products, from 25mm (1 inch) pavers to 300mm (12 inch) high wall units. Advantages -Fully automatic mould change with height adjustment -Can be placed on existing foundations -Existing moulds can still be used Standard with -High-performance hydraulics -Oil bath vibrator -Laser measurement of the filler box -Variotronic Technical data - RH 760 - RH 780 production board(mm)** - - 660 x 470 - 1.070 x 700 production area (mm)** - - 640 x 450 - 1.050 x 680 min. product height (mm) - - 25 - 25 max. product height (mm) - - 305 - 400 dead weight approx. (kg) - - 18.000 - 27.000 paver 10x20x6 without face mix - cycle time (s) - 8,5 - 9,5 m² in 8h - 692 - 1.546 qty stones/form - 12 - 30 paver 10x20x6 with face mix - cycle time (s) - - - - m² in 8h - - - - qty stones/form - - - - hollow block 20x40x20 - cycle time (s) - 8,5 - 9,5 quantity in 8h - 8.640 - 12.884 qty stones/form - 3 - 5
