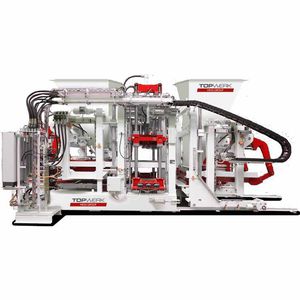

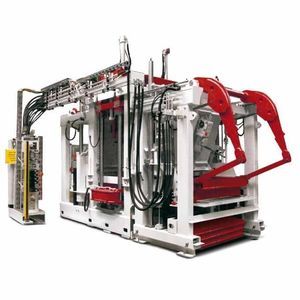

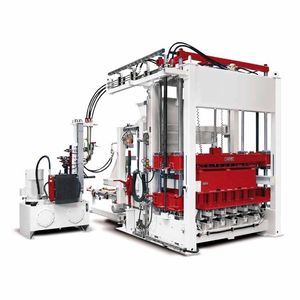

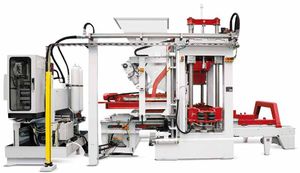

Concrete block making machine MULTIMAT RH 500-3

automatic

The RH 500 incorporates traditional heavy-duty machine technology in a compact structure with advanced electronic, pneumatic, and mechanical components. It is suitable for a start-up operation, or a dedicated output line for an expanding operation. Advantages -Wide range of products from 25mm (I inch) to -300mm (12 inches) -Mechanical height stops for specific and -accurate height -Suitable for slabs, pavers, hollow blocks, and -similar concrete products Standard equipment: -Oil bath vibrators -Hydraulically powered filler box Technical data production board (mm) - 1.200 x 670 production area (mm) - 1.100 x 620 min. product height (mm) - 25 max. product height (mm) - 300 dead weight approx. (kg) - 7.700 paver 10x20x6 without face mix - cycle time (s) - 17 m² in 8h - 863 qty stones/form - 30 paver 10x20x6 with face mix - cycle time (s) - 22 m² in 8h - 667 qty stones/form - 30 hollow block 20x40x20 - cycle time (s) - 20 quantity in 8h - 6.120 qty stones/form - 5
