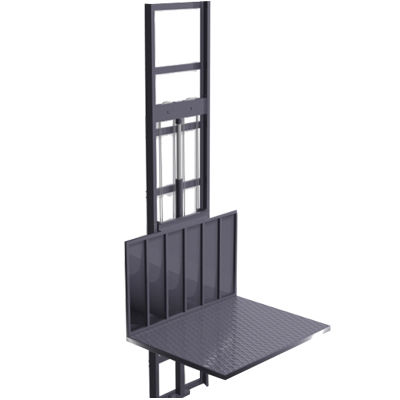

lifting platform / hydraulic

Add to MyDirectIndustry favorites
lifting platform / hydraulic lifting platform / hydraulic
{{requestButtons}}

Characteristics

  • Function:

    lifting

  • Other characteristics:

    hydraulic

  • Load limit:

    Max.: 5,000 kg (11,023 lb)

    Min.: 150 kg (331 lb)

Description

1 COLUMN PLATFORM

Custom manufactured with different heights and areas.
Platform for loads of 150 kg up to 3,000 kg.
Maximum height, 12 m.
Non-slip plate
Cable slack or breakage control. Hydraulic fall arrest.
Rated velocity 0.1 m/s (option of 0.2 m/s model). End of travel safety timer.
Control panels, with emergency stop button, located outside the platform’s footprint.

2 COLUMN PLATFORM

Custom manufactured with different heights and areas.
Platform for loads of 3,000 kg up to 5,000 kg.
Maximum height, 12 m.
Non-slip plate
Cable slack or breakage control. Hydraulic fall arrest.
Rated velocity 0.1 m/s (option of 0.2 m/s model). End of travel safety timer.
Control panels, with emergency stop button, located outside the platform’s footprint.
