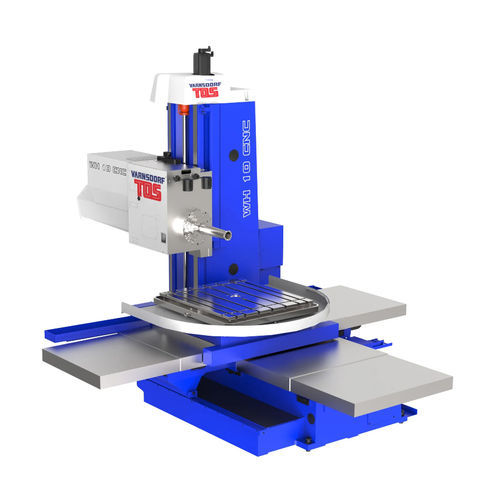

Conventional boring machine WH 10
horizontalfor automatic tool changers

conventional boring machine
conventional boring machine
conventional boring machine
Add to favorites
Compare this product


Characteristics

Control type
conventional
Spindle orientation
horizontal
Applications
for automatic tool changers

Description

WH 10 is a table-type horizontal boring machine with a retractable main spindle with a diameter of 100 mm and maximum table load of 3,000 kg. With its size, the machine ranks among the smallest representatives of TOS VARNSDORF a.s. machines. The optimally dimensioned machine structure made of grey cast iron consists of a fixed stand and a longitudinal bed, along which the transverse bed moves, on which the rotary table is placed. Thanks to the rigid structure with excellent vibration damping, sufficiently dimensioned drives and precise guidance with defined clearances, the machine is intended for universal machining of non-rotating workpieces of smaller size and weight, mainly made of cast iron, cast steel and steel, including technologically demanding operations. Special accessories, peripheral devices and special equipment of a mainly technological nature are used to expand the machine capabilities (e.g. guide supports, face plate, milling heads, clamping accessories, etc.). View detailed technical parameters SUITABLE FOR SMALL WORKPIECES UP TO 3 TONNES POSSIBILITY OF ATC RETROFIT SUITABLE FOR PIECE TO SMALL SERIES PRODUCTION MACHINE CONFIGURATION base version with a main spindle diameter of 100 mm. version with automatic tool change

VIDEO
