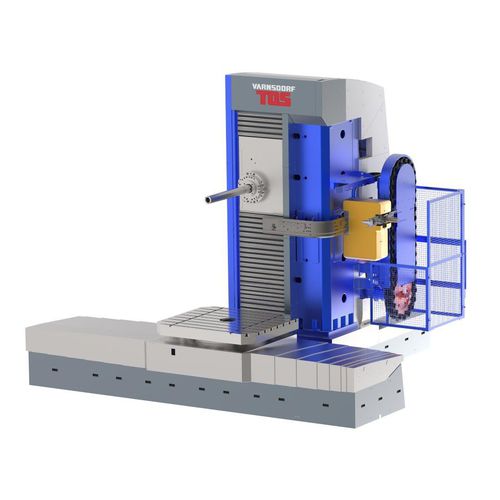

CNC boring mill WHN 110 (Q, MC)
horizontal5-axishigh-precision

CNC boring mill
CNC boring mill
CNC boring mill
CNC boring mill
CNC boring mill
CNC boring mill
CNC boring mill
CNC boring mill
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Other characteristics
5-axis, high-precision, rotating table, high-productivity, high-rigidity, modular, for automatic tool changers, medium-sized, with pallet changer
X travel

Min.: 1,600 mm (63 in)

Max.: 3,000 mm (118 in)

Y travel

Min.: 1,250 mm (49 in)

Max.: 1,600 mm (63 in)

Z travel

Min.: 800 mm (31 in)

Max.: 1,250 mm (49 in)

Power

41 kW (55.74447 hp)

W travel (spindle)

710 mm (28 in)

Spindle diameter

112 mm (4 in)

Description

- leading edge technology machine corresponding with the needs of the up-to-date progressive machining - effective universal chip removal machining of non-rotary workpieces of larger size and weight, employing the partprograms of the most progressive technological features - modular design offers a chance to choose from a broad range of optional travel tenghts in all axes. This provides the customers with a possibility to choose for themselves a machine that suits their needs the most - either SINUMERIK 840D SL, HEIDENHAIN TNC 640 or FANUC 31i control system can be selected for controlling the machine - on the customer’s wish the machine can be supplied also in design „BASIC“ with modified technical parameters Basic options of the machine - WHN 110 - the basic model - WHN 110 Q - the Automatic Tool Changer (ATC) equipped model - WHN 110 MC - the Automatic Pallet Changer (APC) equipped model

VIDEO
