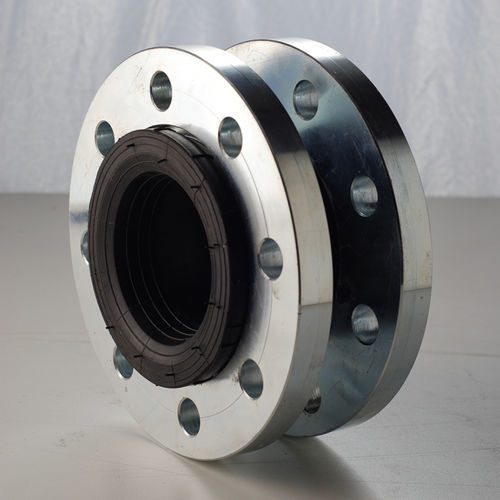

Rubber pipe expansion joint

roundflangeaxial

Totflex rubber expansion joints are manufactured from special synthetic rubber. These expansion joints are able to work for temperatures from -5 °C to 90 °C due to their heat resistant structure. Totflex rubber expansion joints are flexible expansion joints that absorb vibration, noise and elongation in the system. Advantages of the Totflex Rubber Expansion Joints Absorb axial, lateral and angular expansions Isolate vibration and noise Accommodate misalignment Do not require any gasket or seal Easy assembly due to loose flange connections Can equipped with different type of flange pressure class Application Area Shipbuilding & Marine Applications HVAC Applications Air Compressors Mechanical Installations Domestic Water Applications Liquid Industry Technical Futures Bellow Material - Stainless Steel AISI304(Opt. AISI316, AISI321) Intermediate Pipe Material - Carbon Steel St37.2(Opt. AISI304, AISI316) Connection Types - Fixed Flanged, Loose (Rotatable) Flanged, Weld Neck End End Material - Carbon Steel St37.2 (Opt. AISI304, AISI316) Operating Temperature - -20 °C/+400 °C Operating Pressure - PN6/PN10/PN16/PN25/PN40/PN64 Nominal Diameters - DN25(1”) to DN3000(120”) Design - EJMA Standards
