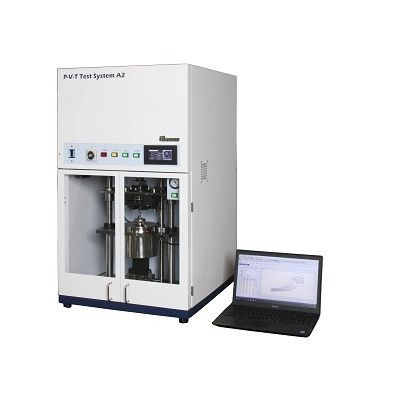

Test system A2

The relationship between pressure (P), specific volume (V), and temperature (T) during the melting and solidification of resin in injection molding and other processes is an important factor affecting shrinkage, sink marks, and deformation in the molding process. The understanding of these properties is essential as a database for CAE. P-V-T Test System can continuously measure the P-V-T characteristics of the resin by pressurizing the resin in a molten state up to 400°C, and the data can be analyzed by a PC. Features & Benefits ● Small sample volume (approx. 1.5 ml) is required for measurement. ● Air pressurization system enables high-speed loading and easy handling. ● Vacuum de-aerating system prevents air entrapment during sample setting. ● After the sample is set, the measurement is completely automatic until the end of measurement (automatic measurement of up to 10 tests). ● Dedicated software for thermosetting resins is also included. ● E-mail notification function (at the end of measurement or when an error occurs) Temperature range - RT(+5°C) to 400°C Diameter of furnace body - ∅9.55mm Maximum pressure - 200MPa Measurement range of displacement - 10 to 30mm (resolution 1µm) Power supply - Single-phase, AC100V, 50/60Hz, 1kVA (or specify) Compressed air requirement - 0.55MPa Dimensions - W670 × D750 × H1050mm Weight - Approx. 120kg
