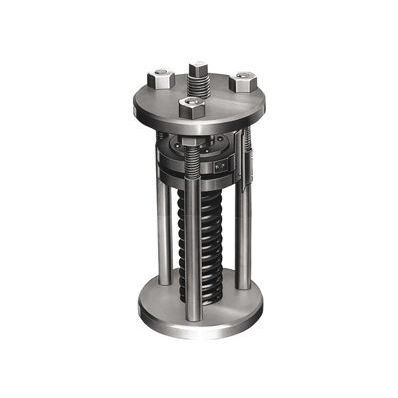

Compression test jig CL

The Compression Set Apparatus (Constant load) is used for measuring permanent strain. Materials like rubber, etc. are subjected to a constant load and kept in this state in a high temperature. After releasing the load, recovery factor is measured. Specimen size - Diameter: ∅29mm Thickness: 12.5 to 13mm Dimensions - W100 × D100 × H230mm Weight - Approx. 7kg The Compression Set Apparatus (Constant deflection) is used for measuring permanent strain. Materials like rubber, etc. are subjected to a constant strain and kept in this state in a high temperature. After releasing the strain, recovery factor is measured. Compression rate - 25%, 15%, 10% Spacer - 9.50 / 9.38 / 9.35 / 4.75 Dimensions - W184 × D100 × H110mm Weight - Approx. 11kg
