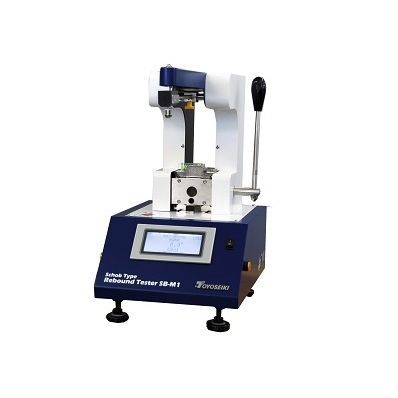

Resilience tester SB-M1

for rubberbenchtopdigital

Schob type Rebound Tester evaluates rebound resilience of rubber conforms to ISO 4662. (Tripsometer method) Resilience Tester measures rebound resilience of elastomers and etc. with a small specimen. Temperature conditions can also be applied as option. Diameter of impact hemisphere - ∅12.5mm Specimen diameter - ∅29.0mm Specimen thickness - 12.5mm Power supply - Single-phase, AC100 to 240V, 50/60Hz, 0.1kVA Dimensions - W275 × D415 × H450mm Weight - Approx. 30kg Hammer unit - Diameter of impact hemisphere: ∅12.5mm Impact force: 0.25kg Drop angle: 90° Impact velocity: 1.88m/s Release system: Electromagnet Specimen supply unit - System: Revolver type Number of specimen: 20 pieces Specimen diameter: ∅29±0.5mm Specimen thickness: 12.5±0.5mm Specimen holding force: 200±20N (adjustable) Data processing unit - Provided as standard feature Power supply - Single-phase, AC100V, 50/60Hz, 0.2kVA Compressed air requirement - 0.4 to 0.7MPa Dimensions - W550 × D700 × H880mm Weight - Approx. 100kg
