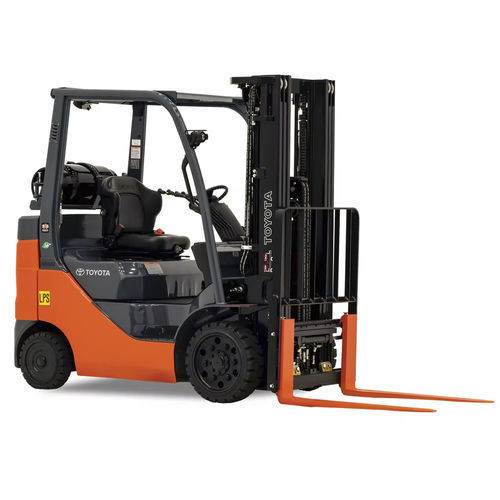

Gasoline forklift 8FGCU series
ride-onfor warehouseindustrial

Gasoline forklift - 8FGCU series - Toyota Industrial Equipment - ride-on / for warehouse / industrial
Gasoline forklift - 8FGCU series - Toyota Industrial Equipment - ride-on / for warehouse / industrial
Gasoline forklift - 8FGCU series - Toyota Industrial Equipment - ride-on / for warehouse / industrial - image - 2
Gasoline forklift - 8FGCU series - Toyota Industrial Equipment - ride-on / for warehouse / industrial - image - 3
Gasoline forklift - 8FGCU series - Toyota Industrial Equipment - ride-on / for warehouse / industrial - image - 4
Add to favorites
Compare this product

Characteristics

Motor type
gasoline
Operator
ride-on
Applications
handling, industrial, for warehouse
Other characteristics
4-wheel, counterbalanced, cushion tire, medium-load
Carrying capacity

Max.: 6,500 lb
(2,948.4 kg)

Min.: 3,000 lb
(1,360.8 kg)

Lifting height

Max.: 278 in

Min.: 80 in

Overall width

Max.: 43.7 in

Min.: 37.2 in

Load center distance

24 in

Weight without load

Max.: 9,860 lb
(4,472.4 kg)

Min.: 5,890 lb
(2,671.7 kg)

Axle loading with maximum load front

Max.: 14,120 lb
(6,404.7 kg)

Min.: 7,810 lb
(3,542.6 kg)

Axle loading with maximum load rear

Max.: 2,240 lb
(1,016 kg)

Min.: 1,080 lb
(489.9 kg)

Axle loading without load front

Max.: 3,110 lb
(1,410.7 kg)

Min.: 2,180 lb
(988.8 kg)

Axle loading without load rear

Max.: 6,870 lb
(3,116.2 kg)

Min.: 3,550 lb
(1,610.3 kg)

Height of mast when lowered

Max.: 83.3 in

Min.: 83.1 in

Free lift

Max.: 5.9 in

Min.: 5.3 in

Overall height with mast raised

Max.: 179.7 in

Min.: 179.3 in

Height to top of overhead guard

Max.: 80.7 in

Min.: 80.1 in

Length to fork face

Max.: 98.6 in

Min.: 82.3 in

Ground clearance at center of wheelbase with load

4.1 in

Turning circle radius

Max.: 81.1 in

Min.: 67.5 in

Travel speed

10.6 mph, 10.9 mph
(17.1 km/h, 17.5 km/h)

Lifting speed

Max.: 640 mm/s

Min.: 500 mm/s

Lowering speed

500 mm/s, 550 mm/s

Gradeability

Max.: 43 %

Min.: 16 %

Rated output

48 ch, 51 ch, 56 ch
(48 hp, 51 hp, 56 hp)

Cubic capacity

27 l, 45 l
(7.1 gal, 11.9 gal)

Maximum operating pressure

2,275 psi

Oil flow

60.6 l/min, 75.7 l/min
(16 us gal/min, 20 us gal/min)

Description

Toyota’s Core IC Cushion Forklift is one of the most popular counterbalance forklifts in North America. Warehousing and distribution applications, the auto industry, general manufacturing plants and retail storefronts often utilize Toyota’s Core IC Cushion for its extreme versatility. Powerful enough to lift up to 6,500 lbs. yet capable of navigating in 12-foot aisles, the Core IC Cushion forklift is a trusted multipurpose forklift. Performance Versatility to Get Things Done At Toyota, we know that your operation is challenged by growing demands, and that you need forklifts that thrive, even with additional use. The Toyota Core IC Cushion Forklift is an industry-leading multipurpose forklift. Toyota's innovative Active Stability System (SAS)™ comes standard on all Core IC Cushion models. IC to Electric Conversion Sustainability Starts with Toyota With the rise of sustainability practices, more and more companies are taking significant steps to reduce their environmental footprint by adopting electric forklifts, charging stations, and batteries in their facilities. At Toyota, we uniquely design our industry-leading forklifts with cutting-edge technologies to help take your operation to the next level. But our expertise goes far beyond forklifts – we offer a variety of resources, such as site surveys , in-depth consultations, and energy surveys. This holistic approach allows us to better understand your application and easily identify which energy options are best for your facility's needs. You can rely on our dedicated and knowledgeable dealer network to ensure you find the best electric solution to power your fleet.
