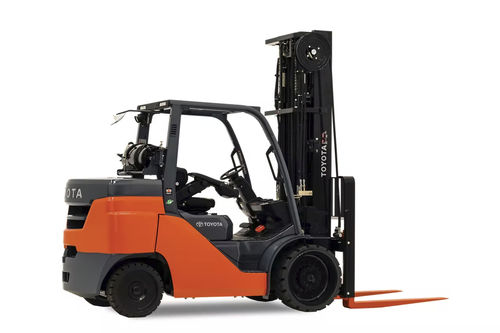

LPG forklift 8FGC series
ride-onindoorfor warehouse

LPG forklift - 8FGC series - Toyota Industrial Equipment - ride-on / indoor / for warehouse
LPG forklift - 8FGC series - Toyota Industrial Equipment - ride-on / indoor / for warehouse
LPG forklift - 8FGC series - Toyota Industrial Equipment - ride-on / indoor / for warehouse - image - 2
LPG forklift - 8FGC series - Toyota Industrial Equipment - ride-on / indoor / for warehouse - image - 3
Add to favorites
Compare this product

Characteristics

Motor type
LPG
Operator
ride-on
Applications
handling, for warehouse, indoor
Other characteristics
4-wheel, heavy-duty, for heavy loads, cushion tire
Carrying capacity

Min.: 8,000 lb
(3,628.7 kg)

Max.: 15,500 lb
(7,030.7 kg)

Lifting height

Min.: 120 in

Max.: 239 in

Overall width

Min.: 50 in

Max.: 57.1 in

Load center distance

17.7 in, 18.1 in, 18.5 in, 20.9 in

Weight without load

Min.: 13,730 lb
(6,227.8 kg)

Max.: 20,870 lb
(9,466.5 kg)

Axle loading with maximum load front

Min.: 18,600 lb
(8,436.8 kg)

Max.: 32,310 lb
(14,655.6 kg)

Axle loading with maximum load rear

Min.: 2,850 lb
(1,292.7 kg)

Max.: 4,000 lb
(1,814.4 kg)

Axle loading without load front

Min.: 5,510 lb
(2,499.3 kg)

Max.: 7,640 lb
(3,465.4 kg)

Axle loading without load rear

Min.: 8,010 lb
(3,633.3 kg)

Max.: 13,280 lb
(6,023.7 kg)

Track width front

43.9 in, 45.1 in

Track width rear

Min.: 41.4 in

Max.: 43.5 in

Height of mast when lowered

81.1 in, 94.5 in

Free lift

4.9 in, 33.1 in

Overall height with mast raised

174.6 in, 207.5 in

Height to top of overhead guard

Min.: 83.5 in

Max.: 86 in

Length to fork face

Min.: 103 in

Max.: 118.1 in

Ground clearance under mast with load

3.3 in

Ground clearance at center of wheelbase with load

5.7 in, 7.1 in

Turning circle radius

Min.: 90 in

Max.: 102 in

Travel speed

Min.: 11.8 mph
(19 km/h)

Max.: 13 mph
(20.9 km/h)

Lifting speed

Min.: 410 mm/s

Max.: 550 mm/s

Lowering speed

Min.: 480 mm/s

Max.: 540 mm/s

Rated drawbar pull

Min.: 1,110 kgf

Max.: 4,500 kgf

Gradeability

Min.: 15 %

Max.: 47 %

Rated output

65 kW, 66 kW
(88.4 hp, 89.7 hp)

Maximum operating pressure

2,630 psi, 2,990 psi

Oil flow

128 l/min
(33.8 us gal/min)

Description

Toyota’s Large IC Cushion Forklift is a durable high lift capacity counterbalance forklift used primarily indoors and in specialty applications such as retail, lumber yards, heavy-duty manufacturing, shipping and freight, and various warehouse applications. This forklift is built to last and handle the toughest loads. With reduced fuel emissions and fuel consumption, the Large IC Cushion Forklift is an indoor heavy duty solution to your material handling challenges. Performance Built to Last Big enough to handle the most demanding jobs. Fuel-efficient enough to save businesses money while increasing productivity. Toyota's Large IC Cushion forklift is designed to use less fuel and produce fewer emissions. This forklift is capable of navigating 13-foot and 14-foot aisles while providing nearly 20 feet of lift. Most importantly, it's built to last. Get to know your indoor heavy-duty solution. Because it's a Toyota, its legendary quality, value, and reliability mean it's a smart choice, too. Forklift Ergonomics for Operators Toyota's IC Large Cushion Forklift comes with improved ergonomics, including load-sensing power steering, 11.8-inch steering wheel, in-dash courtesy tray and an oversized cup holder. This forklift also has a dash-mounted instrument display, low and wide entry steps, and a 4-way adjustable full-suspension vinyl seat, so operators feel comfortable and competent when performing their daily tasks.
