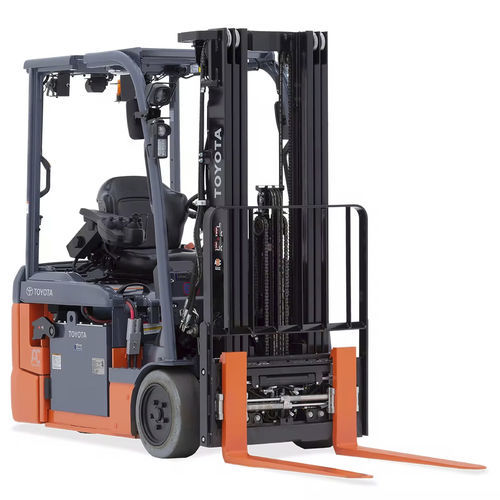

Electric forklift 8FBE series
ride-onnarrow-aisleindustrial

Electric forklift - 8FBE series - Toyota Industrial Equipment - ride-on / narrow-aisle / industrial
Electric forklift - 8FBE series - Toyota Industrial Equipment - ride-on / narrow-aisle / industrial
Electric forklift - 8FBE series - Toyota Industrial Equipment - ride-on / narrow-aisle / industrial - image - 2
Electric forklift - 8FBE series - Toyota Industrial Equipment - ride-on / narrow-aisle / industrial - image - 3
Electric forklift - 8FBE series - Toyota Industrial Equipment - ride-on / narrow-aisle / industrial - image - 4
Electric forklift - 8FBE series - Toyota Industrial Equipment - ride-on / narrow-aisle / industrial - image - 5
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
industrial, narrow-aisle
Other characteristics
pneumatic tire, 3-wheel, cushion tire, medium-load
Carrying capacity

3,000 lb, 3,500 lb, 4,000 lb
(1,360.8 kg, 1,587.6 kg, 1,814.4 kg)

Lifting height

Max.: 277.5 in

Min.: 100 in

Overall width

41.5 in

Load center distance

13.8 in, 14.4 in

Weight without load

Max.: 5,400 lb
(2,449.4 kg)

Min.: 4,810 lb
(2,181.8 kg)

Axle loading with maximum load front

Max.: 10,200 lb
(4,626.6 kg)

Min.: 8,320 lb
(3,773.9 kg)

Axle loading with maximum load rear

Max.: 1,300 lb
(589.7 kg)

Min.: 1,040 lb
(471.7 kg)

Axle loading without load front

Max.: 3,420 lb
(1,551.3 kg)

Min.: 3,070 lb
(1,392.5 kg)

Axle loading without load rear

Max.: 4,080 lb
(1,850.7 kg)

Min.: 3,240 lb
(1,469.6 kg)

Track width front

34.5 in

Track width rear

6.9 in

Height of mast when lowered

77.6 in

Free lift

5.7 in, 5.9 in

Overall height with mast raised

167.5 in, 167.7 in

Height to top of overhead guard

81 in

Length to fork face

Max.: 77.2 in

Min.: 69 in

Fork carriage width

36 in

Ground clearance at center of wheelbase with load

3.3 in

Turning circle radius

Max.: 62.8 in

Min.: 55.1 in

Travel speed

Max.: 10.2 mph
(16.4 km/h)

Min.: 9.7 mph
(15.6 km/h)

Gradeability

22 %, 24 %, 25 %, 27 %

Maximum operating pressure

2,000 psi

Description

The Toyota 3-Wheel Electric Forklift is a multi-use, counterbalance forklift that leads the industry in run time, travel speeds, and lift/lowering speeds. Available in a “short” model, the ergonomically pleasing, easy-to-maintain 3-Wheel Electric Forklift is an asset to any application, including narrow aisles and tight spaces. With more than 30 advances, this forklift is more versatile than ever. Welcome to a whole new world of uptime, efficiency, and productivity-enhancing performance. Spend less time on maintenance and more time getting things done. Special Features MyInsights®: Toyota Telematics Automatic Parking Brake SEnS+ Smart Environment Sensor Plus® Compatible Performance True Multi-Purpose Forklift Toyota's 3-Wheel Electric Forklift beats the competition when it counts. Industry-leading acceleration and travel speed, faster lifting, lower speeds, and 40% longer run time on a single charge keep you moving when needed. Navigating the warehouse is easier than ever. Load and unload quickly, with unsurpassed lifting and lowering speeds. Easily control fork placement with smooth, responsive and progressive hydraulics on the mast, and enjoy the added assistance of cornering cruise control. Powered by Lithium-ion Powering You Toward a Sustainable Future At Toyota, we understand how important it is to keep your operation running at peak performance. When utilizing electric forklifts in your operation, you need a powerful, reliable, and sustainable solution that will continue to power your operation forward, year after year. Enter Toyota’s Lithium-ion Batteries.
