Electric forklift 8FB series
ride-onindooroutdoor

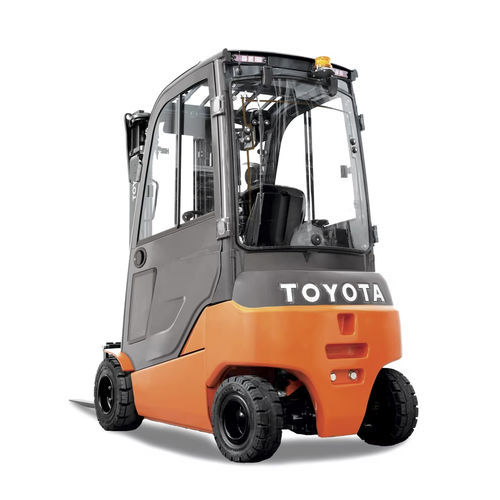

Electric forklift - 8FB series - Toyota Industrial Equipment - ride-on / indoor / outdoor
Electric forklift - 8FB series - Toyota Industrial Equipment - ride-on / indoor / outdoor
Electric forklift - 8FB series - Toyota Industrial Equipment - ride-on / indoor / outdoor - image - 2
Electric forklift - 8FB series - Toyota Industrial Equipment - ride-on / indoor / outdoor - image - 3
Electric forklift - 8FB series - Toyota Industrial Equipment - ride-on / indoor / outdoor - image - 4
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, for warehouse, indoor, outdoor
Carrying capacity

3,000 lb, 3,500 lb, 4,000 lb, 5,000 lb
(1,360.8 kg, 1,587.6 kg, 1,814.4 kg, 2,268 kg)

Overall width

41.7 in, 45.4 in

Load center distance

24 in

Weight without load

Max.: 5,331 lb
(2,418.1 kg)

Min.: 4,321 lb
(1,960 kg)

Axle loading with maximum load front

Max.: 10,379 lb
(4,707.8 kg)

Min.: 8,942 lb
(4,056 kg)

Axle loading with maximum load rear

Max.: 3,547 lb
(1,608.9 kg)

Min.: 3,263 lb
(1,480.1 kg)

Axle loading without load front

Max.: 1,351 lb
(612.8 kg)

Min.: 1,094 lb
(496.2 kg)

Axle loading without load rear

Max.: 3,955 lb
(1,794 kg)

Min.: 3,058 lb
(1,387.1 kg)

Track width front

35.6 in, 36.4 in

Track width rear

34.6 in

Height of mast when lowered

83.5 in

Free lift

4.5 in

Overall height with mast raised

152.3 in

Height to top of overhead guard

80.9 in

Length to fork face

79.3 in, 80.5 in, 83.5 in

Turning circle radius

67.2 in, 68.4 in, 71.3 in

Travel speed

12.4 mph
(20 km/h)

Lifting speed

380 mm/s, 420 mm/s, 430 mm/s, 540 mm/s, 610 mm/s

Lowering speed

500 mm/s, 520 mm/s, 530 mm/s, 550 mm/s

Rated drawbar pull

Max.: 9,534 N

Min.: 4,851 N

Gradeability

Max.: 24.6 %

Min.: 13.4 %

Maximum operating pressure

2,654 psi

Oil flow

41.3 l/min
(10.9 us gal/min)

Description

In material handling, the last things you need are limitations. Utilizing different trucks for indoor and outdoor work creates inefficiencies that ultimately impact your bottom line. When you need raw power to tackle outdoor challenges and efficient, environmentally friendly operation indoors, look no further than Toyota’s 48V Electric Pneumatic Counterbalance Forklift. Special Features System of Active Stability (SAS)™ AC Drive & Lift Motors Performance Versatility For Any Operation Toyota designed and built AC Motors to power the 48V Electric Pneumatic to new levels of productivity and efficiency while delivering low-maintenance operation. Regenerative braking returns unused energy to the battery during operation. The multifunction display offers truck information right at your fingertips. Add in completely programmable performance and power select capabilities to fine-tune your operation, and you have one powerful and versatile machine designed to increase your productivity and profitability. Power Studies Powering You Forward Let Toyota Energy Consultants be your guide in understanding your operation’s energy consumption. Conducting a power study is a crucial step in determining which energy source is best for your operation. Toyota’s Power Study removes the guesswork from deciding which power solution is best for our electric or internal combustion units.
