Electric forklift 7FBCU series
ride-onindustrialhandling

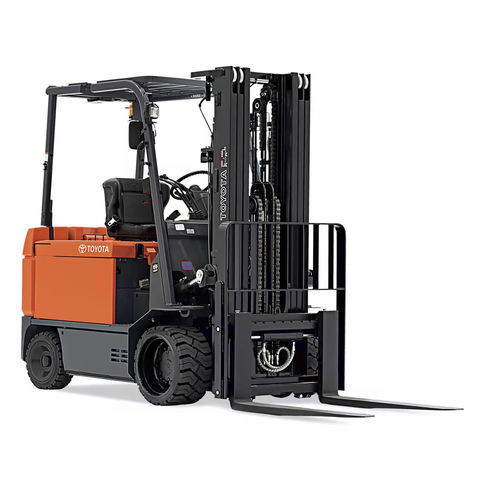

Electric forklift - 7FBCU series - Toyota Industrial Equipment - ride-on / industrial / handling
Electric forklift - 7FBCU series - Toyota Industrial Equipment - ride-on / industrial / handling
Electric forklift - 7FBCU series - Toyota Industrial Equipment - ride-on / industrial / handling - image - 2
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, industrial
Other characteristics
4-wheel, cushion tire, low-noise, medium-load
Carrying capacity

Max.: 12,000 lb
(5,443.1 kg)

Min.: 8,000 lb
(3,628.7 kg)

Lifting height

Max.: 239 in

Min.: 120 in

Overall width

47.6 in, 53.1 in

Load center distance

18.3 in, 19 in, 20.9 in

Weight without load

10,450 lb, 12,570 lb, 15,010 lb
(4,740 kg, 5,701.7 kg, 6,808.4 kg)

Axle loading with maximum load front

19,350 lb, 22,710 lb, 27,460 lb
(8,777 kg, 10,301.1 kg, 12,455.6 kg)

Axle loading with maximum load rear

2,500 lb, 3,460 lb, 3,780 lb
(1,134 kg, 1,569.4 kg, 1,714.6 kg)

Axle loading without load front

5,670 lb, 5,820 lb, 7,730 lb
(2,571.9 kg, 2,639.9 kg, 3,506.3 kg)

Axle loading without load rear

8,030 lb, 10,500 lb, 11,510 lb
(3,642.3 kg, 4,762.7 kg, 5,220.8 kg)

Track width front

38.6 in, 41.1 in, 42.9 in

Track width rear

41.3 in, 42.4 in, 43.5 in

Height of mast when lowered

81.1 in, 83 in, 84.6 in

Free lift

4.3 in, 4.9 in

Overall height with mast raised

168.1 in, 174.6 in

Height to top of overhead guard

91.9 in, 92.1 in, 95.3 in

Length to fork face

98.8 in, 103.5 in, 113 in

Ground clearance under mast with load

3.1 in

Ground clearance at center of wheelbase with load

4.7 in, 4.9 in, 5.1 in

Turning circle radius

84.3 in, 87.6 in, 96.1 in

Travel speed

Max.: 11.2 mph
(18 km/h)

Min.: 7.5 mph
(12.1 km/h)

Lifting speed

Max.: 600 mm/s

Min.: 190 mm/s

Lowering speed

500 mm/s, 550 mm/s

Rated drawbar pull

Max.: 2,170 kgf

Min.: 800 kgf

Gradeability

Max.: 22 %

Min.: 5 %

Rated output

9.7 kW, 13.2 kW
(13.2 hp, 17.9 hp)

Maximum operating pressure

2,630 psi

Description

Toyota's Large Electric Forklift gets the job done quietly and reliably. With 12,000 pounds of lifting power, this electric solution is ideal for any warehouse, including those in the food and beverage industries. This ruggedly designed counterbalance forklift has been built to withstand your toughest jobs while keeping the operator comfortable and productive. Special Features System of Active Stability (SAS)™ AC Drive Motor Performance Proven Power Toyota's energy-efficient AC motor makes the Large Electric Forklift the perfect high-capacity solution for lifting and carrying heavy weights. This counterbalance forklift is an environmentally friendly and emission-free solution for sensitive applications. Smoother acceleration, increased uptime, and less frequent scheduled maintenance are also part of the package. Toyota's Large Electric Forklift speaks quietly, but it carries a heavy load. Powered by Lithium-ion Propelling You Toward a Sustainable Future At Toyota, we understand how important it is to keep your operation running at peak performance. When using electric forklifts in your operation, you need a powerful, reliable, and sustainable solution that will continue to power your operation, year after year. Toyota Lithium-ion Batteries come into play. Using a patented design and electrolyte technology to boost your productivity, you'll never have to worry about losing voltage or performance. You can rely on Toyota's expert and dedicated team to meet your energy needs.
