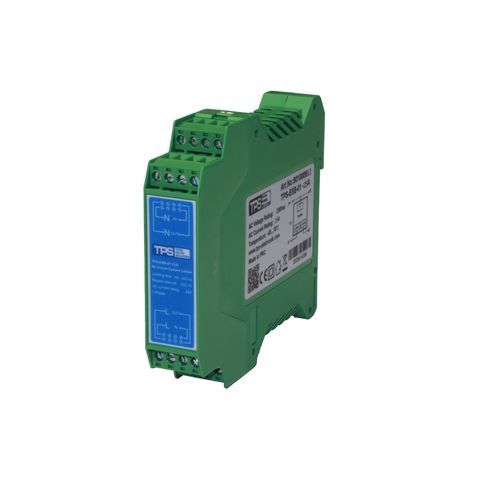

Current residual current circuit breaker TPS-ESB-01-25A

ACsingle-phasecompact

The TPS-ESB-01-25A is a 25 A active AC inrush current limiter designed for 230 VAC single-phase industrial installations. It provides controlled suppression of start-up currents using an IC-based limiting circuit and an integrated bypass relay to remove continuous power dissipation after the inrush period. The unit is optimised for DIN-rail mounting and straightforward integration into control panels where protection from excessive inrush is required.

Key features

• 25 A rated current suitable for demanding start-up conditions.
• Advanced IC-based electronic limiting with integrated bypass relay for higher efficiency and improved longevity compared with NTC thermistors.
• Limits peak inrush up to 45 A for approximately 100–500 ms to protect downstream components and avoid nuisance tripping.
• Compact DIN-rail form factor for TS 35/7.5 or TS 35/15 installation.
• Durable screw terminal connections accepting AWG13–AWG11 (2.6–4.2 mm²) conductors.
• Wide operating range: -40 °C to 70 °C, up to 95% RH non‑condensing, altitude up to 2000 m.
• Compliance and certifications referenced: EN60950-1, EN61000-6-2, EN61000-6-3; CE, RoHS; additional listings (UL, WEEE, UKCA) referenced in documentation.

Technical specifications

• Model: TPS-ESB-01-25A
• Rated (input) current: 25 A
• Input voltage range: 207–253 VAC (single-phase, nominal 230 VAC)
• Peak inrush current clamping: up to 45 A (peak)
• Limiting duration: approximately 100–500 ms
• Dimensions (L × W × H): 112 × 22.5 × 100 mm
• Mounting: DIN-rail TS 35/7.5 or TS 35/15
• Screw terminal size: AWG13–AWG11 (2.6–4.2 mm²) — product page also lists AWG24–AWG16 (inconsistent references)
• Suppressor / output stage: integrated bypass relay
• Operational tolerance: designed for operation from -40 °C to 70 °C (page lists 40 °C to 70 °C; confirm lower bound if required), up to 95% RH non‑condensing, altitude up to 2000 m
• Housing / protection: compact DIN-rail case, IP20
• Typical applications: large motors, isolation transformers, capacitive and other high inrush loads
• Regulatory / compliance notes: EN60950-1, EN61000-6-2, EN61000-6-3; CE marking; RoHS; additional references (UL, WEEE, UKCA) in documentation
