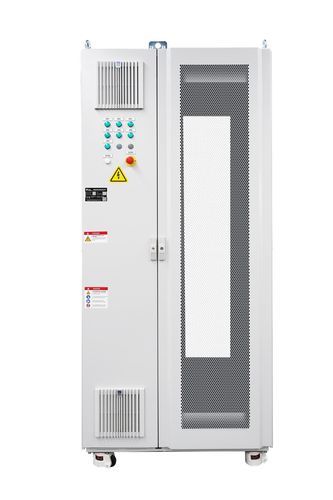

Distribution electrical enclosure RA1053

equipped19" rackpower distribution

Product Overview
The Sentinel Power Cabinet Series 48U (RA1053) is a pre-wired, UL 508A certified industrial power cabinet engineered for ultra-high-power 19-inch programmable power supply installations. Configurable as Sentinel-X 48U or Sentinel-Y 48U, it delivers a scalable system from 10 kW up to 420 kW, supporting up to seven 60 kW power modules in a single 48U enclosure. The cabinet integrates a high-current DC busbar system exceeding 2000 A and a thermal design rated for 30K–50K temperature rise above ambient at 100% duty cycle to ensure continuous operation. Cooling is provided by a redundant high-pressure fan matrix with >2000 CFM combined airflow and 85% open perforated doors, plus per-bay temperature sensors and automated emergency power throttling. Grid compatibility and power quality features include active power factor correction to maintain THDi < 5%, a staggered soft-start sequence to prevent nuisance upstream trips, and a balanced 3-phase input to avoid neutral-point shift. Input supports 3L+PE 600 A at 400 VAC / 480 VAC (50Hz/60Hz). The cabinet has a standard 10 kA SCCR with optional 65 kA upgrade, a reinforced frame supporting 1600 kg, safety door interlock, dual-channel emergency stop, and customizable remote control and alarm functions.

Key Features

• Ultra-high density and scalability: 10 kW–420 kW in a 48U footprint; supports up to 7 × 60 kW modules.
• UL 508A certified safety: compliant with UL 508A; 10 kA SCCR standard, optional 65 kA; current-limiting protection.
• Pre-wired, ready to deploy: factory pre-wired AC input distribution and high-current DC busbars to minimize field wiring and commissioning time.
• Advanced thermal management: redundant roof-mounted fans >2000 CFM, 85% open perforated doors, per-bay temperature monitoring, automated power throttling for overheat protection.
• Optimized grid compatibility: active PFC (THDi < 5%), staggered soft-start, balanced 3-phase input to prevent neutral-point shift.
• Robust, customizable design: reinforced frame (1600 kg capacity), safety door interlock, dual-channel E-stop, configurable remote control and alarms.

Technical Specifications

• Series: Sentinel Power Cabinet Series 48U
• Article Number: RA1053
• Power range: 10 kW – 420 kW (supports up to seven 60 kW modules)
• DC busbar capacity: high-current distribution >2000 A
• Thermal design: 30K–50K temperature rise above ambient at 100% duty cycle
• Cooling: redundant high-pressure fan matrix >2000 CFM combined airflow; 85% open perforated doors; per-bay temperature sensors; automated emergency power throttling
• Power quality: active power factor correction, THDi < 5%
• Input compatibility: 3L+PE 600 A AC input at 400 VAC / 480 VAC; 50 Hz / 60 Hz
• Short-circuit current rating (SCCR): standard 10 kA; optional upgrade to 65 kA
• Rated current: 600 A
• Rated voltage: 400 VAC / 480 VAC
• External dimensions (W*D*H): 1000*1000*2200 mm
• Frame load capacity: 1600 kg
• Protection & safety: staggered soft-start, current-limiting protection, safety door interlock, dual-channel emergency stop
• Customer options: power module configurations, cabinet temperature & humidity control, audible & visual alarms, remote control and display options
