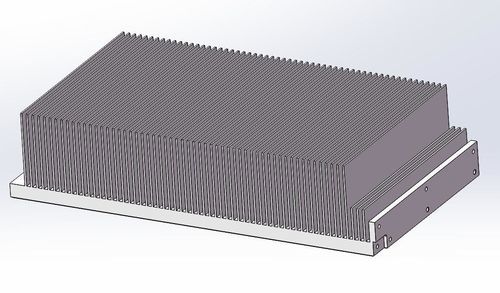

Aluminum heat sink Aluminium Profile (HFX)anodized aluminumpowerCNC milled and tapped
Add to favorites
Compare this product
Characteristics
- Material
- aluminum, anodized aluminum
- Options
- power, CNC milled and tapped, thermally conductive, compact
Description
The aluminium heat-sink profile HFX is designed for thermal management in power equipment such as switching power supplies, UPS, inverters and chargers. Manufactured from AL6063-T5, the profile combines good thermal conductivity with machinability and is finished by anodising to improve corrosion resistance.
Key features
Applications
Technical specifications
Key features
- Material: AL6063-T5 aluminium alloy for effective heat conduction and mechanical performance.
- Anodised surface for enhanced corrosion resistance in varied environments.
- Dimensions: 242×55 mm profile section for compact and efficient heat dissipation.
- Lightweight and machinable: suitable for CNC milling and custom modifications.
- Application-ready geometry: prepared for integration into power supplies, inverters, UPS and chargers.
Applications
- Switching power supplies
- Uninterruptible Power Supplies (UPS)
- Inverters (solar and wind power)
- Chargers and adapters
Technical specifications
- Article Number: HS1258
- Manufacturer Code: HFX
- Manufacturer: TPS
- Material: AL6063-T5 (6063 aluminium alloy)
- Height: 55 mm
- Width: 242 mm
- Length: customized according to drawings
- Surface: Anodised; CNC milling available
Catalogs
Aluminum Profile Heat Sink
8 Pages
